Sliding Mechanism Double 60 Hillaldamⓓ

• Smooth running ball-bearing hangers
• Double track and cranked hangers for door spacing

Max door mass: 30kg
Max door height: 2100mm
Max door width: 900mm
Door thickness: 16-32mm

Standard packed sets

4D - 2 doors in 1200mm opening
5D - 2 doors in 1500mm opening
6D - 2 doors in 1800mm opening
8D - 3 doors in 2400mm opening

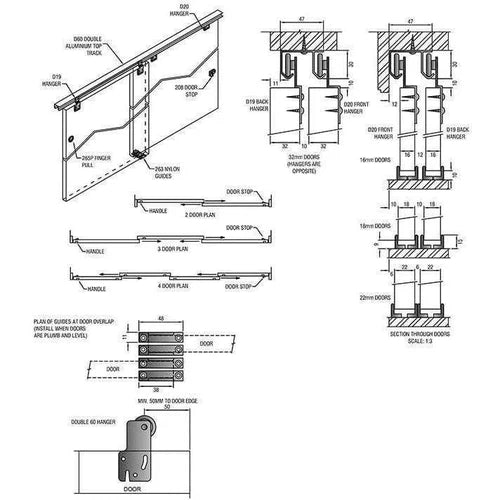

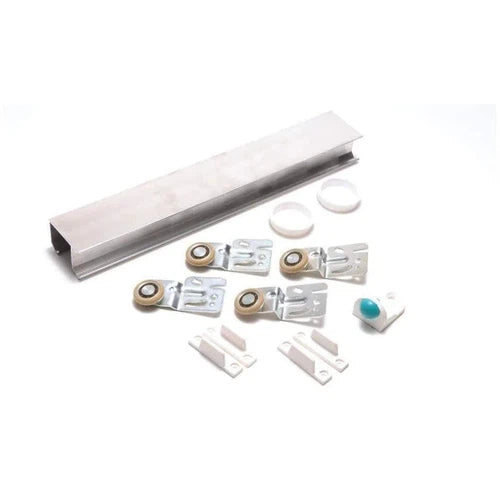

D60 Aluminium top track
- D19 Back hangers
- D20 Front hangers
- 263 Nylon guides
- 265P Finger pulls
- 208 Door stop

NOTE:

- Deep front hanger (D20) and shallow back hanger (D19) for doors up to 22mm thick. For 32mm doors, hangers are reversed.
