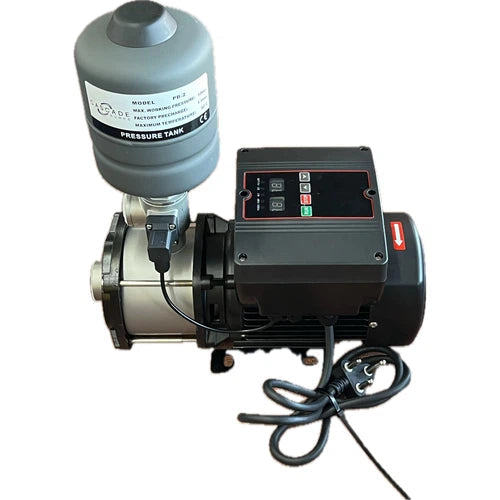

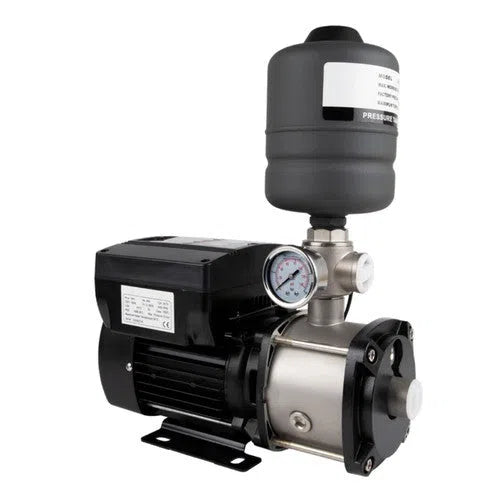

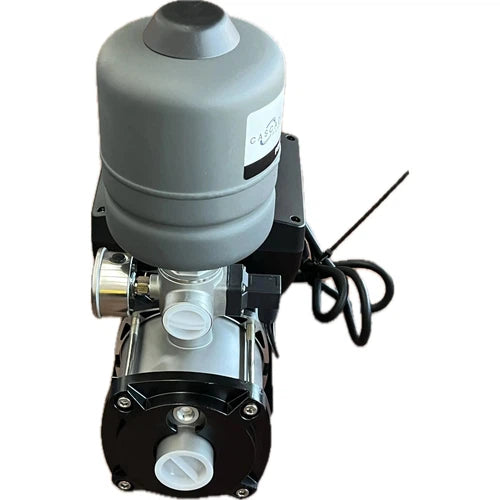

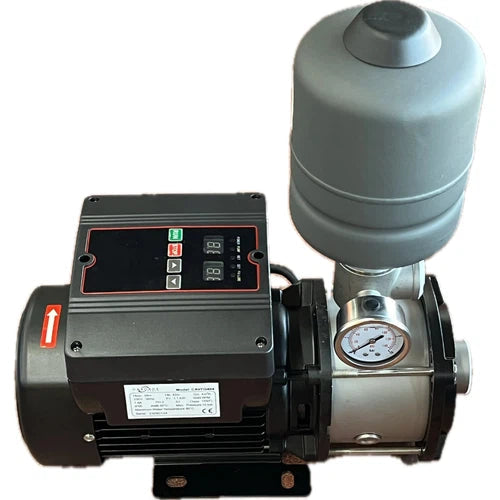

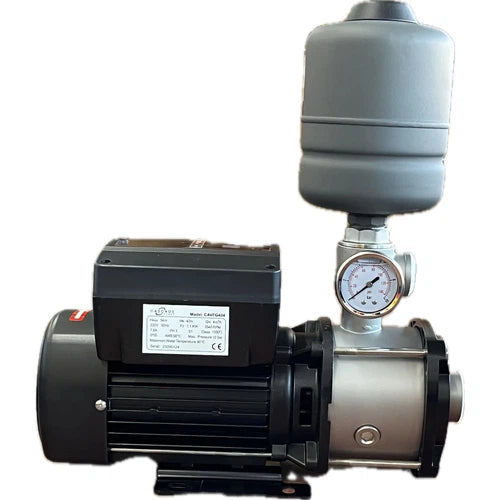

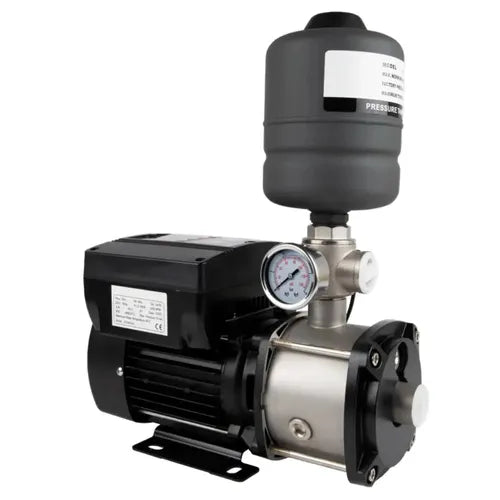

Constant Pressure VSD Pump Multistage Pascali

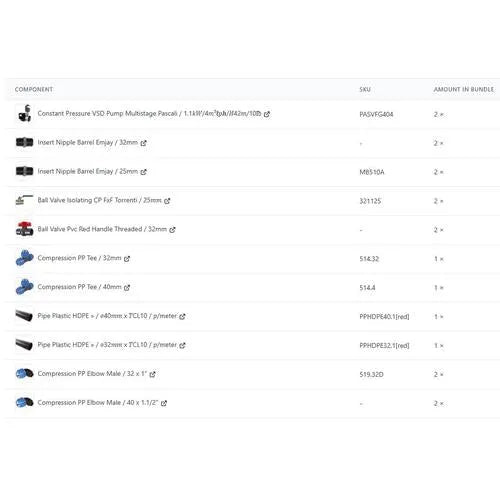

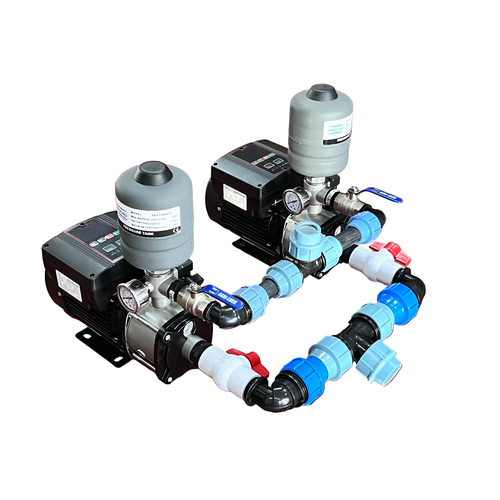

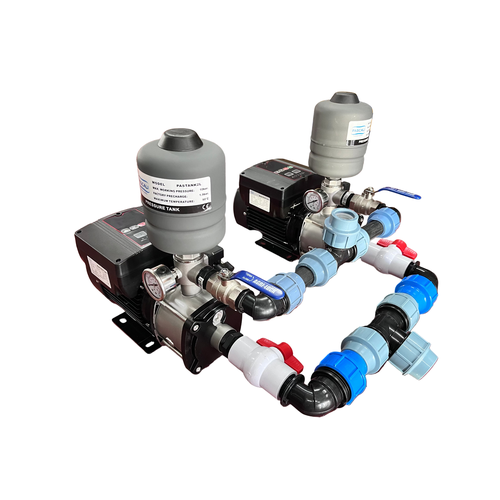

• Can be connected in parralel will comunication cable.
• MANUAL
• Input Power: 160-250V, single phase, 50 Hz
• Inlet: 1.25″,
• Outlet: 1″

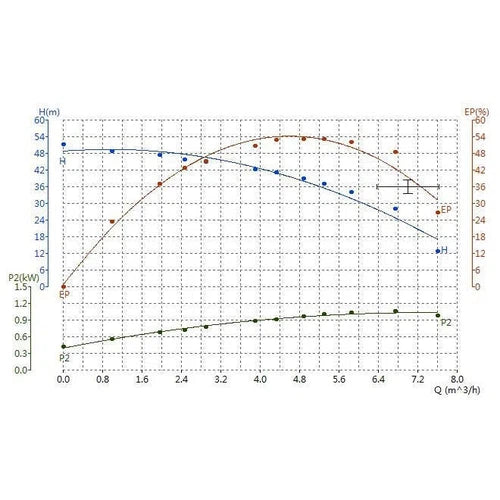

• Max Rated Pressure Setting: 4.8 bar @ 40 l/m
• Min Rated Pressure Setting: 2.4 bar @ 110 l/m Rated Settings: 4 bar @ 66 l/m, 3 bar @ 100 l/m

FEATURES:

• Constant pressure
• Efficient & Energy-saving
• Super Quiet
• 100% Anticorrosive Wet End

MATERIALS:

• Stainless steel pump body & impeller
• 304 welding shaft
• Silicon carbide to graphite mechanical seal
• Sensata pressure sensor
• Stainless steel five-way & oil pressure gauge
• IP54

The VFG series pump uses VVVF technology for variable speed regulation, maintaining constant outlet pressure automatically.

Energy Efficiency:

• Saves 30%-60% energy compared to traditional methods
• Small footprint, high efficiency, and flexible configuration

Operation:

• Reduces torque and abrasion on the shaft for longer pump life
• Eliminates water hammer effect with soft start and stop

Installation and Water Quality:

• Easy installation, replaces traditional water supply devices
• Direct pressurized water supply reduces water quality pollution
• All parts in contact with water are stainless steel (304 or 316) for healthy water quality.
