- Input Power: 160-250V, single phase, 50 Hz
- Inlet: 1.25″,
- Outlet: 1″

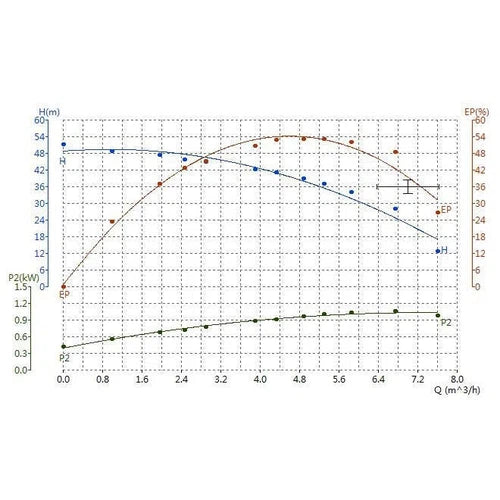

- Max Rated Pressure Setting: 4.8 bar @ 40 l/m
- Min Rated Pressure Setting: 2.4 bar @ 110 l/m Rated Settings: 4 bar @ 66 l/m, 3 bar @ 100 l/m
FEATURES:
- Constant pressure
- Efficient & Energy-saving
- Super Quiet
- 100% Anticorrosive Wet End
MATERIALS:
- Stainless steel pump body & impeller
- 304 welding shaft
- Silicon carbide to graphite mechanical seal
- Sensata pressure sensor
- Stainless steel five-way & oil pressure gauge
- IP54

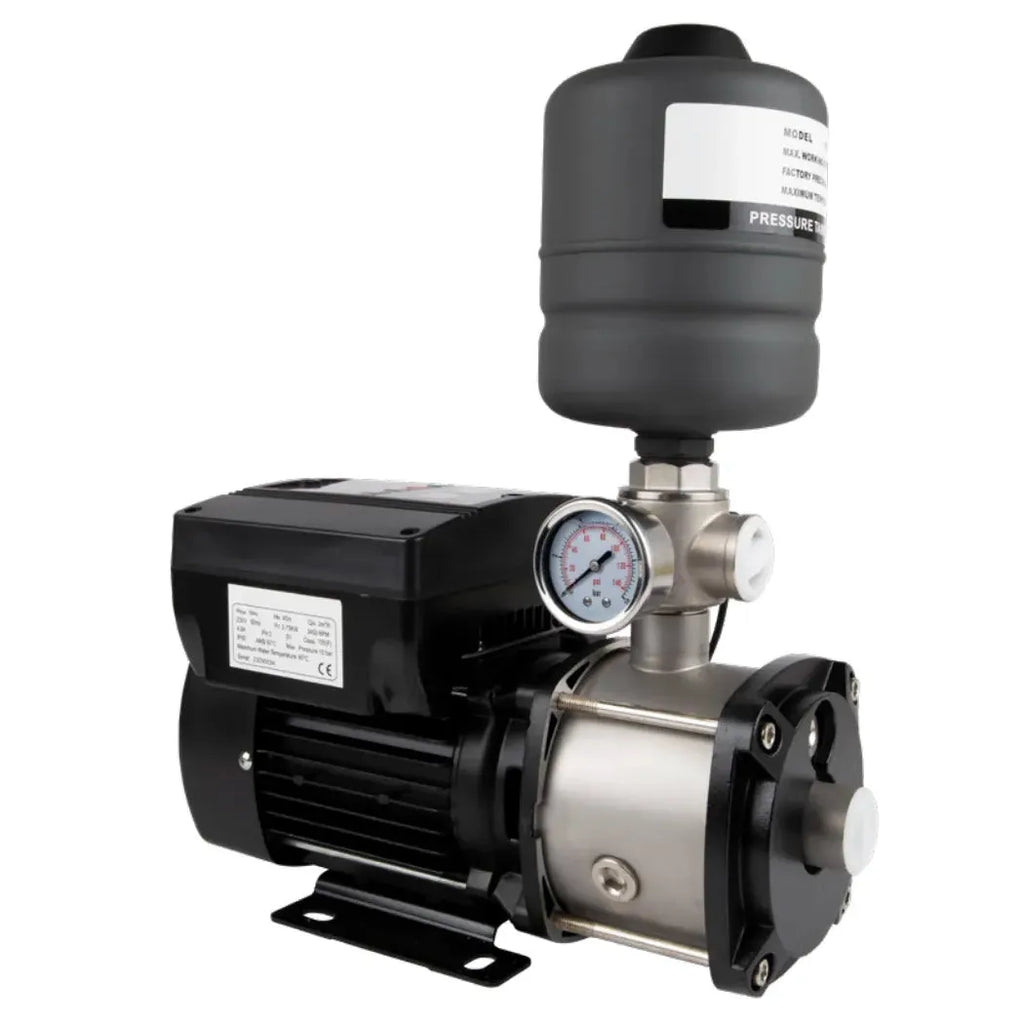

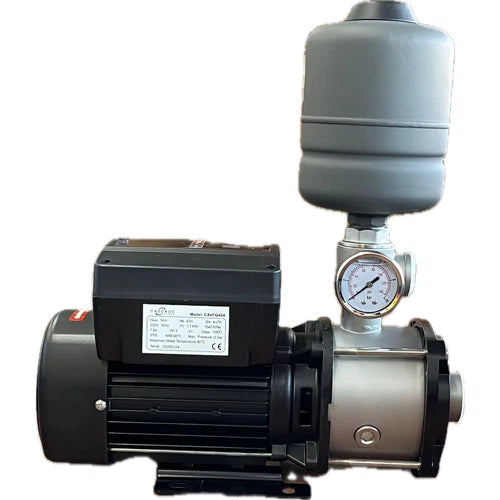

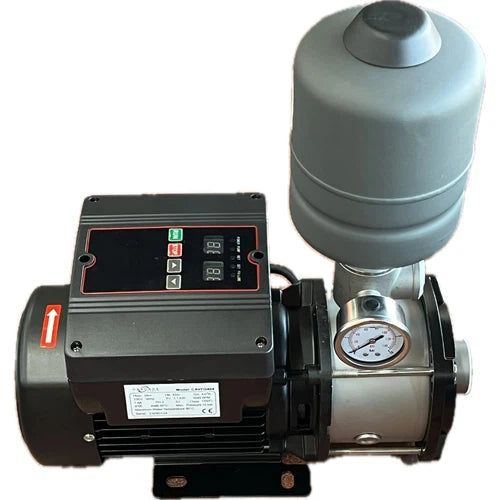

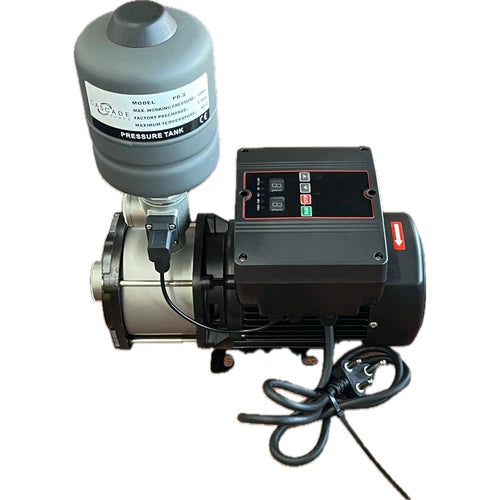

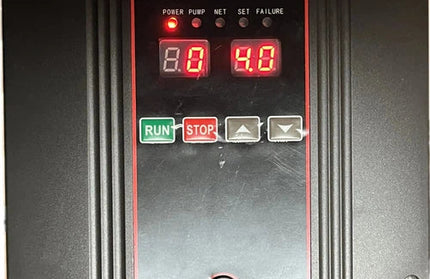

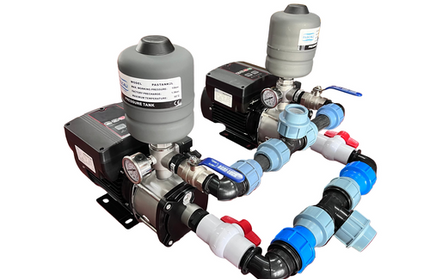

The VFG series pump uses VVVF technology for variable speed regulation, maintaining constant outlet pressure automatically.
Energy Efficiency:
- Saves 30%-60% energy compared to traditional methods
- Small footprint, high efficiency, and flexible configuration
Operation:
- Reduces torque and abrasion on the shaft for longer pump life
- Eliminates water hammer effect with soft start and stop
Installation and Water Quality:
- Easy installation, replaces traditional water supply devices
- Direct pressurized water supply reduces water quality pollution
- All parts in contact with water are stainless steel (304 or 316) for healthy water quality.
