JP 3-42 PT-H
No. 99463874
Suitable for
Domestic ground water intake
Domestic water pressure boosting
Domestic rainwater harvesting

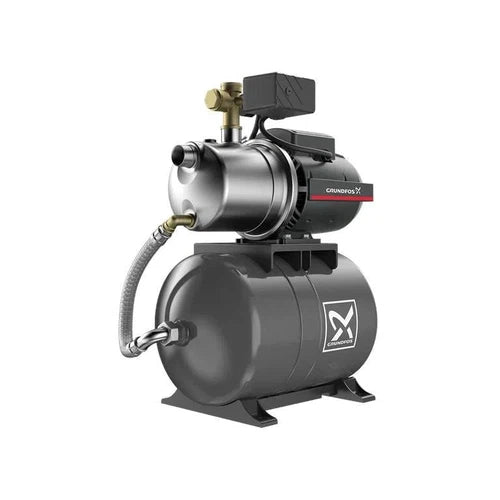

JP PT-H is a booster that consists of a horizontal pressure tank and a self-priming, single-stage centrifugal pump. JP PT-H is designed for various garden and domestic applications.
Product name
JP 3-42 PT-H
Technical
Curve tolerance
ISO9906:2012 3B
Adjustable start pressure (Yes/No)
N
Materials
Pump housing
Stainless steel
Installation
Range of ambient temperature
0 .. 40 °C
Maximum operating pressure
PN 6 bar
Pipe connection standard
ISO 228-1
Type of inlet connection
G(F)
Type of outlet connection
G(F)
Size of inlet connection
1 inch
Size of outlet connection
1 inch
Pressure rating for connection
PN 6
Liquid
Liquid temperature range
0 .. 40 °C
Selected liquid temperature
20 °C
Electrical data
Rated voltage
1 x 220-240 V
Capacitor size - run
12 µF/450 V
Enclosure class (IEC 34-5)
IP44
Insulation class (IEC 85)
F
Controls
Type of connector
Type E/F (CEE7/7)
Others
Environmental approvals
WEEE
