Description

Details

The float switch M 2 is only suitable for use in media without large solids fractions due to the smaller volume and therefore the lower buoyancy force, and is especially suitable for use in small containers with limited space.

Suitability

The float switch M2 is the ideal solution for level control at small space, e.g.:

  • Restricted space
  • Narrow shafts
  • Small containers

Specifications

Spec. Weight
0,95 - 1.05
Max. Temperature
80Β°C
Switching capacity
1 mA / 4V - 2A / 250V~ *
Switching angle
10Β°
Protection class
IP 68 / 2 bar
protection class
II
Cable
TPK/ PVC 3 x 0.5 mmΒ²
Height/diameter
90 / 60 mm
Housing
Polypropylene PP
Housing colour
Orange

* Microswitches with gold-plated contacts for low switching currents in electronic circuits

Electrical connection

Function Strand colour
grey Black Brown
Draining of a container Isolation X X
Filling of a container X Isolation X
Alarm at high liquid levels Isolation X X
Alarm at low liquid levels X Isolation X

Installation

At the installation the level controller it is absolutely necessary to ensure that these can hang freely vertically, do not rest on the base, without impairment by shaft walls, pipes, fittings, etc. Free float and not in flow..

maintenance

If the level controllers are correctly installed and installed, they are practically maintenance-free. Depending on the degree of contamination of the medium, the system must only be checked for deposits and cleaned, if necessary from time to time.

Export-Info

Customs tariff number
85365080
Country of origin
Deutschland
Product form

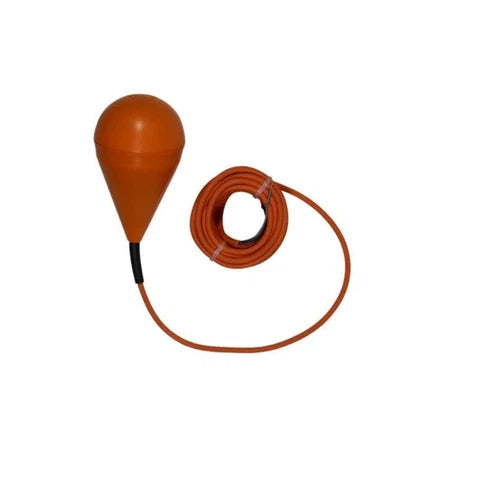

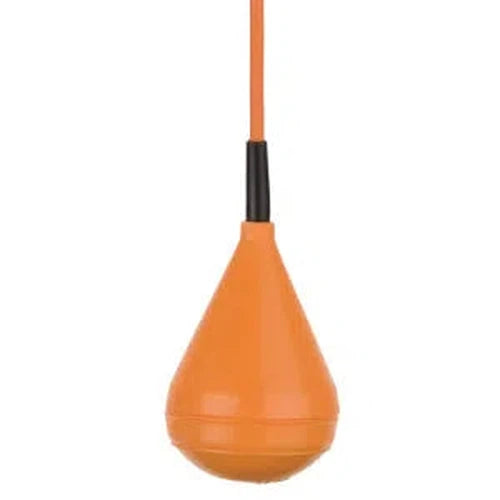

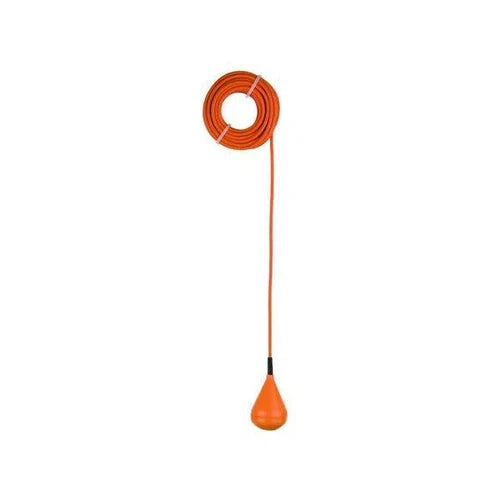

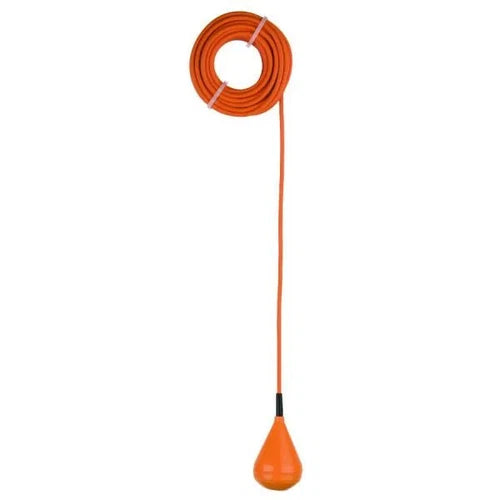

Water Level Float Switch M2 NOLTA

Grundfos

SKU: 40G000510/91427146

R 1,400.00Incl. VAT


Out of stock


    Description

    Details

    The float switch M 2 is only suitable for use in media without large solids fractions due to the smaller volume and therefore the lower buoyancy force, and is especially suitable for use in small containers with limited space.

    Suitability

    The float switch M2 is the ideal solution for level control at small space, e.g.:

    • Restricted space
    • Narrow shafts
    • Small containers

    Specifications

    Spec. Weight
    0,95 - 1.05
    Max. Temperature
    80Β°C
    Switching capacity
    1 mA / 4V - 2A / 250V~ *
    Switching angle
    10Β°
    Protection class
    IP 68 / 2 bar
    protection class
    II
    Cable
    TPK/ PVC 3 x 0.5 mmΒ²
    Height/diameter
    90 / 60 mm
    Housing
    Polypropylene PP
    Housing colour
    Orange

    * Microswitches with gold-plated contacts for low switching currents in electronic circuits

    Electrical connection

    Function Strand colour
    grey Black Brown
    Draining of a container Isolation X X
    Filling of a container X Isolation X
    Alarm at high liquid levels Isolation X X
    Alarm at low liquid levels X Isolation X

    Installation

    At the installation the level controller it is absolutely necessary to ensure that these can hang freely vertically, do not rest on the base, without impairment by shaft walls, pipes, fittings, etc. Free float and not in flow..

    maintenance

    If the level controllers are correctly installed and installed, they are practically maintenance-free. Depending on the degree of contamination of the medium, the system must only be checked for deposits and cleaned, if necessary from time to time.

    Export-Info

    Customs tariff number
    85365080
    Country of origin
    Deutschland
