Borehole Motor 4" 230𝑉 + Wet End KIT Pascali

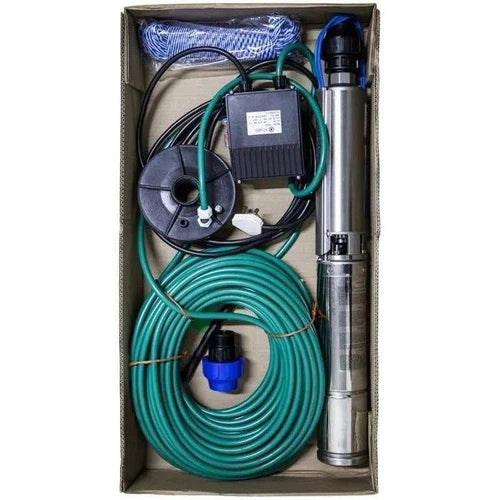

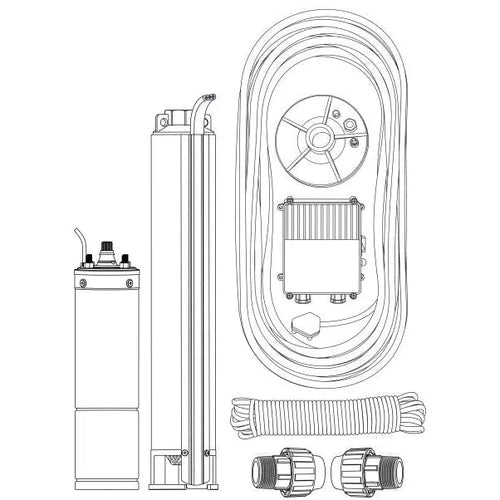

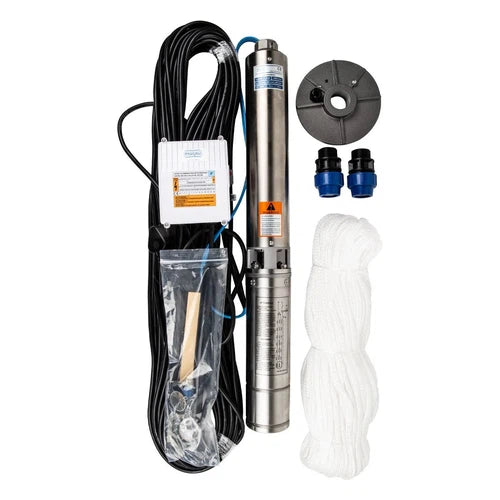

 Includes

1. Submersible pump 100mm
2. Submersible motor 230v
3. Control box  230V •
4. 32mm Aluminium base plate •
5. 2 x Compression male adaptors 32 x 1-1/4 (32mm x 32mm) •
6. 5mm ski rope
7. Submersible cable (1.5mm 4 Core on 0.55kw)(2.5mm 4 Core on 0.75kw)
8. Cable 3 Core 5m (1.5mm on 0.55kw)(2.5mm on 0.75kw)
9. Plug Top (3 Point South African Plug)

For agricultural and domestic applications

The Pascali submersible borehole pump combo range covers a wide range of pumping duties for agricultural and domestic applications. Floating type impellers require less starting torque and are less affected by sand or other abrasive materials. All electrical connections have been connected for ease of installation. Stainless Steel outlet.

• • Water supply from wells & reservoirs
• • Domestic use, civil & industrial applications
• • Garden Irrigation Operating Conditions:
• • Maximum Fluid Temperature up to +35℃
• • Maximum Sand Content: 0.25%
• • Minimum well diameter: 4” Motor & Pump
• • Rewindable motor • 100% copper wire
• • POM Impeller • Ceramic graphite seal
• • 130 V starting efficiency motor
• • Single-phase: 220V-240V / 50Hz
• • Three-phase: 380V-415V /50Hz
• • Equipped with start control box / digital auto-control box
• • NEMA standards
