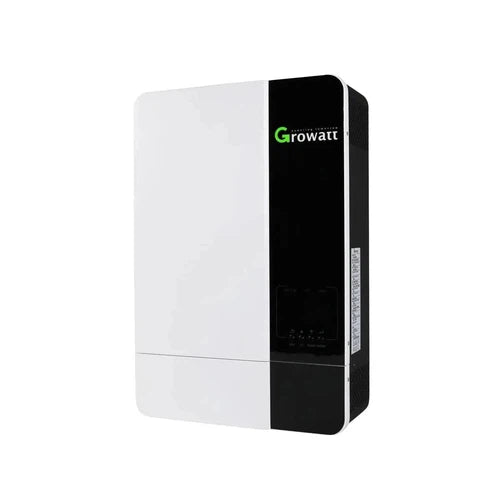

Off-Grid Inverter 5𝑘𝑊 Growatt

FUNCTIONS

• Integrated MPPT charger controller.
• Equalization charging function.
• Max PV input up to 450vDC.
• Choose grid or solar input priority.

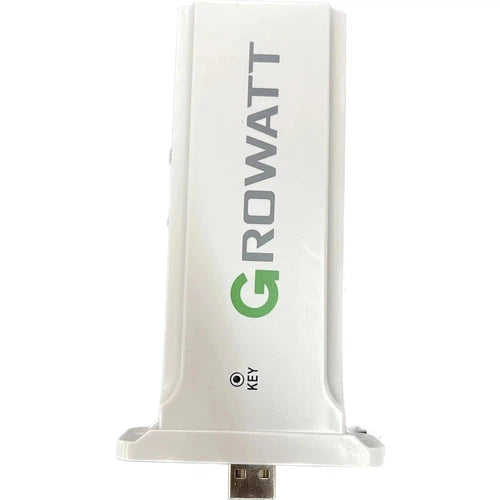

• WIFI/GPRS remote monitoring. (Dongle Included)
• Parallel up to 6 inverters.
• PV & Grid Power combine if PV energy is insufficient for load.
• Flexible schedule for charging and discharging the batteries.

WARRANTY POLICY (2 Years)

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.

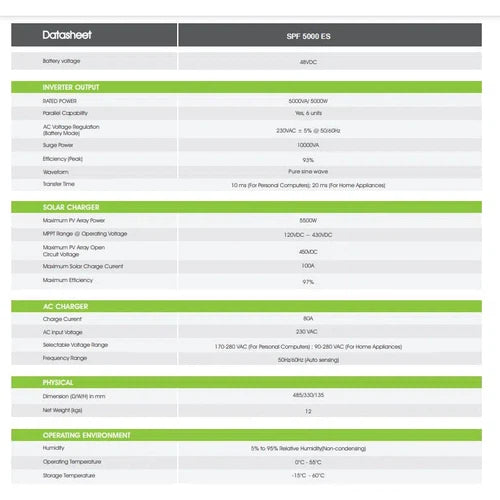

GENERAL SPECIFICATIONS

• Module: SPF 5000 ES.
• Battery voltage: 48vDC.
• Battery type: Lithium/Lead-acid.

INVERTER OUTPUT [AC]

• Rated Power: 5000W.
• AC Voltage Regulation (Battery): 230VAC ± 5%.
• Surge Power: 10000VA for 5 sec.
• Efficiency (Peak): 93%.
• Waveform: Pure sine wave.
• Transfer Time: 10ms - 20ms.

SOLAR CHARGER

• Maximum PV Array Power: 6000W.
• MPPT Range @ Operating Voltage: 120VDC - 430VDC.
• Maximum PV Array Open Circuit Voltage: 450vDC.
• Maximum Solar Charge Current: 100 A.

AC CHARGER

• AC Charge Current: 80A.
• AC Input Voltage: 230 VAC.
• Selectable Voltage Range: 230 VAC.
• Frequency Range : 50 Hz/60 Hz (Auto sensing).

BMS Settings

Battery Brand	Growatt Port	Battery Port	Batt Dip Switches	Inverter Li Protocol
NavaSolar	BMS	RS485	⬆️⬇️⬇️⬇️	04
Dyness	BMS	CAN	⬇️⬇️⬆️⬇️	52
SHOTO	BMS	CAN	⬇️⬇️⬇️⬇️	52
Growatt Hope	BMS			51
