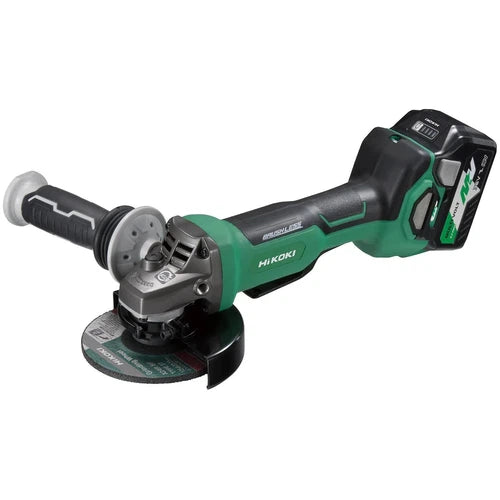

Angle Grinder 125𝑚𝑚 Cordless 36𝑉 HiKOKI

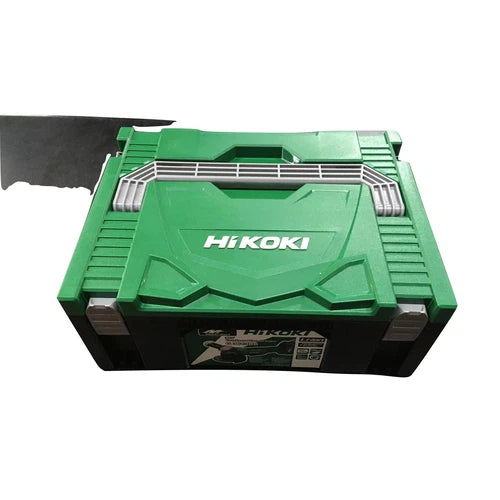

Case Contents

• 1x Grinder

Greater*1 Cutting Performance

• Max Output Comparison

  Model	MULTI VOLT	18V Cordless
  	G3610DA / G3612DA / G3613DA	G18DBBVL
  Max Output	1,270W	680W

• Runtime per Charge (When using the BSL36A18 battery.)

  Mortar Cutting: Approx.12m*2
  When cutting mortar 10mm thick with a 105mm diamond wheel.



  1. In comparison with the G18DBBVL.
  2. The value varies according to the state of battery charge and other operating conditions.

Faster Cutting Speed

• Handles heavy duty applications with an efficiency impossible with conventional 18V grinders.

  Cutting Speed Comparison
  When cutting a groove 5mm deep and 600mm long in mortar with a 105mm diamond wheel.



• The value is for reference purposes. It may vary according to the workpiece material or other operating conditions.

Increased Overload Capacity

• The motor is so powerful as to keep the rotation speed constant, and it is less likely to become overloaded.

  Comparison of Overload Capacity
  When grinding steel with a 125mm grinding wheel.



• The value is for reference purposes. It may vary according to the workpiece material or other operating conditions.

Excellent Handling

• Smallest Grip Circumference in its Class*
  Lightweight and compact body with a slim grip and small head offers easy handling and efficient operation.



• As of December 2017. Among 36V cordless brushless disc grinders made by leading power tool manufacturers. (Surveyed by Koki Holdings.)

Variable Speed Control and Auto Mode Function

• Variable Speed：Variable speed control allows users to change the rotation speed to between 3,000 and 9,500/min. to suit the application.

  Auto Mode：The speed automatically shifts between high (9,500/min.) and low (5,500/min.) speeds depending on the load, resulting in more effective operation.

  Dial Settings and No Load Speeds

  Dial	No Load Speed (/min.)	Use	Variable Speed Dial
  1	3,000
  2	4,750
  3	6,500
  4	8,250
  5	9,500
  A (Auto Mode)	5,500	Light Work, Standby State
  	9,500	Grinding, Cutting

High Level of SafetyBrake System

• Electronic brake stops the wheel in less than 2 sec after the tool is switched off. This allows users to prevent accidents and work much more efficiently.

  Use only the wheel washer supplied:
  No.371677 for G3613DA, G3613DB, G3612DA
  No.373072 for G3610DA, G3610DB



Extra Safety Features

• Kickback Protection System / Anti-Restart Protection / Soft Start / Dust & Water-Resistant Construction
