Description

APPLICATION
- Measures the volume of clean, cold water passing through a pipeline.
- Domestic billing purposes.
FEATURES
- Plastic shell of solid and robust design for long service life.
- Corrosion resistance, UV Stabilised, fibreglass reinforced polymer plastic.
- Optimum accuracy and performance in any position (horizontal or vertical).
- Grooved rotary piston.
- Clear, easily read, liquid sealed 8 digit counter.
- Measuring accuracy approved to SANS 1529-1.
- Internal Non-Return Valve and Strainer.
- Each meter has a unique serial number.
- Pulse prepared.
- Inlet and Outlet threads compatible with ISO metric sizes.
MAXIMUM PERMISSIBLE ERRORS
- In the lower zone from qmin inclusive up to but excluding qt is plus minus 5 percent.
- In the upper zone from qt inclusive up to and including qs is plus minus 2 percent.
WORKING CONDITIONS
- Working temperature: 2 Degree Celsius to 40 Degree Celsius.
- Nominal pressure: 1600 kPa (16 Bar).
- Maximum test pressure: 4800 kPa (48 Bar).
COMPLIANCE STANDARD
- Conforms to SANS 1529-1:2006 (Class C).
- Conforms to ISO4064: Class C.
INSTALLATION REQUIREMENTS
- May be installed on a horizontal or vertical pipeline.
- Pipeline must be flushed before installation.
- Meters should be constantly full of water during operation.
IMPORTANT NOTICE
- Meter to be used with plastic Tailpieces or Connectors.
- No Hemp to be used during installation.
- No soldering or heat to be applied during installation.
Product form

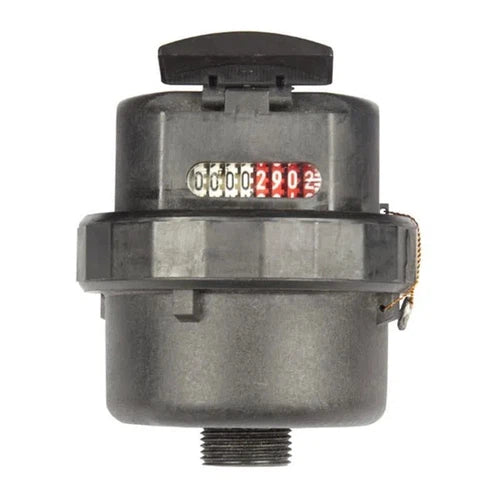

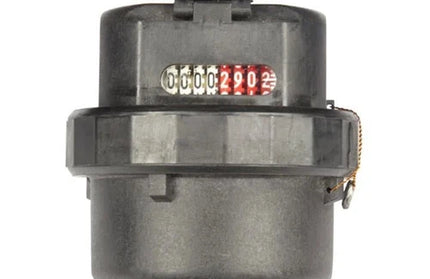

Water Meter Plastic + Tail Pieces

OZZWA Plumbing

R 536.00Incl. VAT

4 products in stock

    Description

    APPLICATION
    - Measures the volume of clean, cold water passing through a pipeline.
    - Domestic billing purposes.
    FEATURES
    - Plastic shell of solid and robust design for long service life.
    - Corrosion resistance, UV Stabilised, fibreglass reinforced polymer plastic.
    - Optimum accuracy and performance in any position (horizontal or vertical).
    - Grooved rotary piston.
    - Clear, easily read, liquid sealed 8 digit counter.
    - Measuring accuracy approved to SANS 1529-1.
    - Internal Non-Return Valve and Strainer.
    - Each meter has a unique serial number.
    - Pulse prepared.
    - Inlet and Outlet threads compatible with ISO metric sizes.
    MAXIMUM PERMISSIBLE ERRORS
    - In the lower zone from qmin inclusive up to but excluding qt is plus minus 5 percent.
    - In the upper zone from qt inclusive up to and including qs is plus minus 2 percent.
    WORKING CONDITIONS
    - Working temperature: 2 Degree Celsius to 40 Degree Celsius.
    - Nominal pressure: 1600 kPa (16 Bar).
    - Maximum test pressure: 4800 kPa (48 Bar).
    COMPLIANCE STANDARD
    - Conforms to SANS 1529-1:2006 (Class C).
    - Conforms to ISO4064: Class C.
    INSTALLATION REQUIREMENTS
    - May be installed on a horizontal or vertical pipeline.
    - Pipeline must be flushed before installation.
    - Meters should be constantly full of water during operation.
    IMPORTANT NOTICE
    - Meter to be used with plastic Tailpieces or Connectors.
    - No Hemp to be used during installation.
    - No soldering or heat to be applied during installation.
