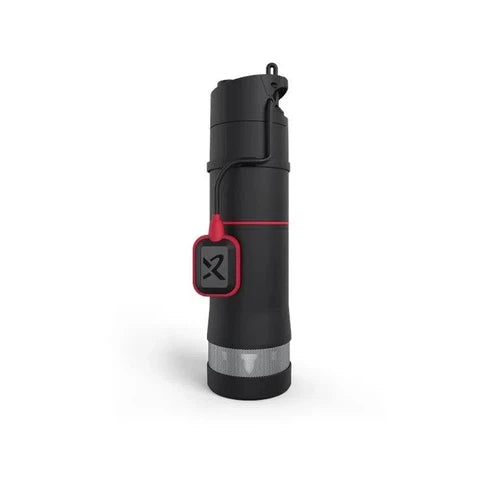

The Grundfos SBA 3-45 A is a submersible booster pump designed for pumping clean water for domestic use. It features an integrated control unit, eliminating the need for an external pump controller. Made from high-quality materials, it is resistant to corrosion. The pump is silent when submerged, making it a noiseless alternative to surface-mounted pumps.
Key features and specifications:
Built on the proven SB platform
Equipped with a 15 m supply cable
Maximum installation depth of 10 m below water level
Liquid temperature range: 0 °C to 40 °C
Maximum particle size: 1 mm

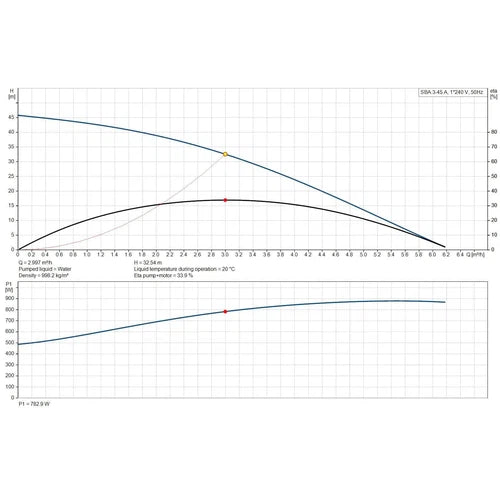

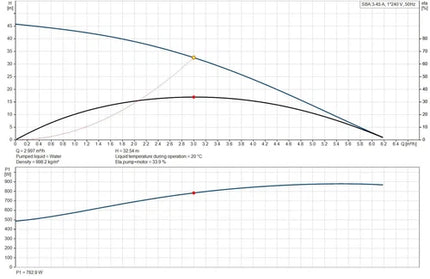

Rated flow: 3 m³/h
Rated head: 32.6 m
Built-in thermal protection against overload and overheating
Controls include a float switch
Approved by CE
Installation depth: 10 m
Electrical data: 0.9 kW input, 0.55 kW rated power, 50 Hz frequency, 1 x 220-240 V rated voltage, 4 A rated current, 12 A starting current, 2800 rpm rated speed, X8 enclosure class, F insulation class
