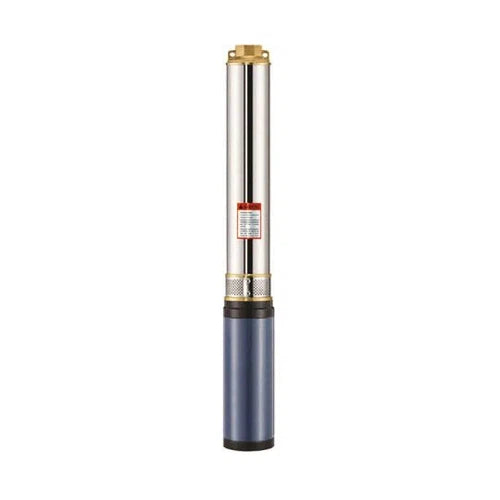

Borehole Motor 4" DC Zilmet

• Maximum Water Submersion Depth 20𝑚
• The PH of should be 6.5-8.5
• The Sediment concentration should not exceed 0.25%
• Cable Thickness 20-40m 1.5mm2
• Cable Thickness 41-100m 2.5mm2

Recommended Safefy Extras to be installed.

• Float Switch
• Magnetic Dry Running Protection.

Material Specs

• Pump external casing: 304SS.
• Delivery casing: Cast Cu, SS, Cast-Iron
• Suction lantern: Cast Cu, SS, Cast-Iron
• Diffuser: Plastic PC, Plastic ABS
• Impeller: Plastic POM
• Shaft: SS
• Shaft Coupling: SS
• Motor External Casing: Cast-Iron
• Top Check: Cast-Iron
• Magnetic shoe: Ferite
