Description

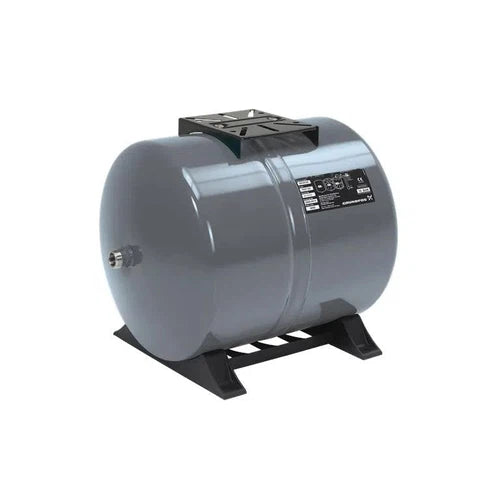

GT-H-24 PN10 G1 H (w. feet and p.stand)
No. 96528388
GT-H is a steel pressure tank with a non-toxic butyl rubber diaphragm with a precision-moulded polypropylene liner for air and water separation designed for drinking water applications.
Product name
GT-H-24 PN10 G1 H (w. feet and p.stand)
Product No
96528388
EAN number
5700397134191
Technical
Approvals
CE,EAC
Approvals for drinking water
WRAS,ACS
Membrane type
DIAPHRAGM
Materials
Tank
Carbon steel / Polypropylene
Diaphragm
BUTYL
Rubber
Installation
Maximum operating pressure
10 bar
Pre-pressure
1.9 bar
Type of connection
G
Size of connection
1 inch
Tank orientation
Horizontal
Liquid
Liquid temperature range
0 .. 90 °C
Tank
Tank volume
24 l
Others
Net weight
5.5 kg
Gross weight
6.3 kg
Application type
Standard
Danish VVS No.
385549354
Finnish LVI No.
3436633
Environmental approvals
WEEE

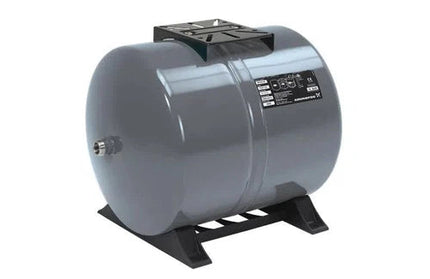

Diaphragm Tank for Pressure Pump Grundfos
Grundfos
R 1,800.00Incl. VAT
Out of stock
Description
GT-H-24 PN10 G1 H (w. feet and p.stand)
No. 96528388
GT-H is a steel pressure tank with a non-toxic butyl rubber diaphragm with a precision-moulded polypropylene liner for air and water separation designed for drinking water applications.
Product name
GT-H-24 PN10 G1 H (w. feet and p.stand)
Product No
96528388
EAN number
5700397134191
Technical
Approvals
CE,EAC
Approvals for drinking water
WRAS,ACS
Membrane type
DIAPHRAGM
Materials
Tank
Carbon steel / Polypropylene
Diaphragm
BUTYL
Rubber
Installation
Maximum operating pressure
10 bar
Pre-pressure
1.9 bar
Type of connection
G
Size of connection
1 inch
Tank orientation
Horizontal
Liquid
Liquid temperature range
0 .. 90 °C
Tank
Tank volume
24 l
Others
Net weight
5.5 kg
Gross weight
6.3 kg
Application type
Standard
Danish VVS No.
385549354
Finnish LVI No.
3436633
Environmental approvals
WEEE
