Description
Genuine Donper hermetic compressors for R134a household and light‑commercial refrigeration. Low back pressure (LBP), 220–240V~50Hz, PTC start. All figures below are Donper's own catalogue ratings at ASHRAE test conditions (−23.3°C evaporating / 54.4°C condensing).
Which size do I need?
Rule 1: if the label on your old compressor is readable, match its model number or cooling watts. Rule 2: never fit a smaller one. The litres in each option are the typical fridge‑freezer size that compressor suits with headroom for hot days — pick the nearest; if you're between two, go up. Chest freezers and display fridges: choose one size up.
| Appliance | Typical size | Cooling capacity |
|---|---|---|
| Bar / mini fridge | 50–120ℓ | 60–115W |
| Single‑door fridge, small fridge‑freezer | 120–250ℓ | 115–140W |
| Fridge‑freezer (top or bottom freezer) | 250–350ℓ | 140–170W |
| Large fridge‑freezer | 350–450ℓ | 170–200W |
| Side‑by‑side, French door, large bottom‑freezer | 450–600ℓ | 190–240W |
| Chest freezer | 150–250ℓ | 140–170W |
| Chest freezer | 250–400ℓ | 170–240W |
Specifications (Donper catalogue, ASHRAE LBP)
| Model | cm³ | Cooling W | Btu/h | Input W | COP | Motor | Run cap | Cooling | Height |
|---|---|---|---|---|---|---|---|---|---|
| S65CZ1 | 6.5 | 170 | 580 | 131 | 1.30 | RSIR | — | Static | 168mm |
| L72CZ1 * | 7.2 | 195 | 665 | 130–144 | 1.35–1.50 | RSIR/RSCR | —/4µF | Static | 168–170mm |
| K230CZ1 * | 8.3 | 230 | 785 | 153 | 1.50 | RSCR | 5µF | Fan | 189mm |

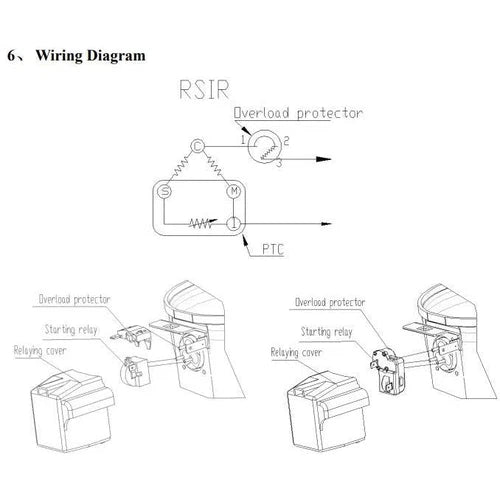

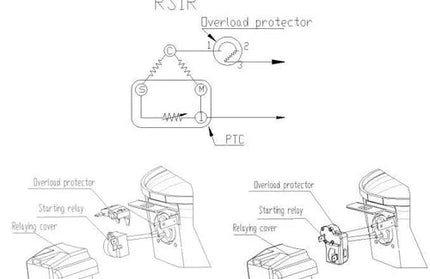

* 7.2cm³ pump supplied as S72CZ1 (RSIR) or LK72CZ (RSCR, 4µF) depending on batch; K230CZ1 is catalogued as KK230CZ1. Same cooling capacity either way. Input W = cooling W ÷ COP. RSIR = PTC relay only; RSCR = PTC relay + run capacitor (supplied).
Common to all models
- Refrigerant: R134a — not interchangeable with R600a. Check your old unit's label.
- Rated voltage: 220–240V~50Hz, single phase. Low starting torque (LST). Thermally protected.
- Application: LBP (−35°C to −10°C evaporating) — domestic fridges, fridge‑freezers, chest freezers, small display fridges.
- Expansion: capillary tube. Max ambient 43°C (K230CZ1 requires fan cooling).
- Oil charge pre‑filled. Installation by a qualified refrigeration technician.
Why no horsepower? Compressor makers don't rate by HP — it's a loose reseller size class that varies from brand to brand. Cooling watts at ASHRAE conditions is the one figure every manufacturer publishes on the same test, so that's what we list.

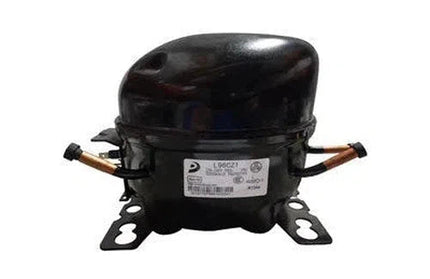

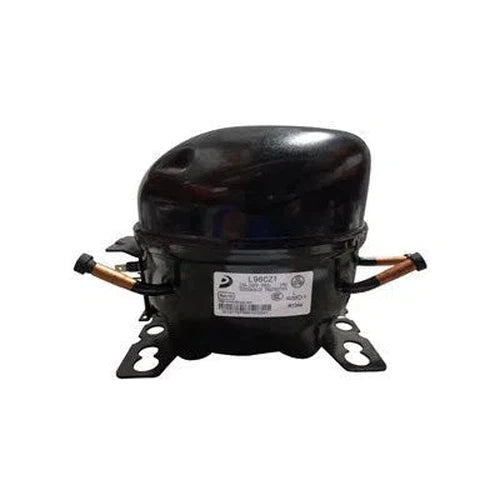

Refrigerator Compressor R134a Donper
R 950.00Incl. VAT
1 in stock
