Description

JP PM is a booster that consists of a pressure manager and a self-priming, single-stage centrifugal pump. JP PM is designed for various garden and domestic applications and has dry-running protection.

Technical

Rated flow
3 mΒ³/h
Rated head
17.91 m
Code for shaft seal
BBVP
Approvals
CE,EAC
Curve tolerance
ISO9906:2012 3B
Pump version
A
Model
A
Adjustable start pressure (Yes/No)
N
Start pressure
1.5 bar

Materials

Pump housing
Stainless steel

EN 1.4301

AISI 304
Impeller
Composite

PPO-20GF
Material code
A

Installation

Range of ambient temperature
0 .. 40 Β°C
Maximum operating pressure
PN 6 bar
Pipe connection standard
ISO 228-1
Type of inlet connection
G(F)
Type of outlet connection
G(F)
Size of inlet connection
1 inch
Size of outlet connection
1 inch
Pressure rating for connection
PN 6

Liquid

Pumped liquid
Water
Liquid temperature range
0 .. 40 Β°C
Selected liquid temperature
20 Β°C
Density
998.2 kg/mΒ³

Electrical data

Power input P1
700 W
Rated power - P2
0.55 kW
Mains frequency
50 Hz
Rated voltage
1 x 220-240 V
Rated current
3.2 A
Starting current
13.2 A
Rated speed
2850 rpm
Capacitor size - run
14 Β΅F/450 V
Enclosure class (IEC 34-5)
IP44
Insulation class (IEC 85)
F
Length of cable
1.5 m
Power plug
SCHUKO

Controls

Type of connector
Type E/F (CEE7/7)

Others

Net weight
9 kg
Gross weight
14 kg
Environmental approvals
WEEE

Product form

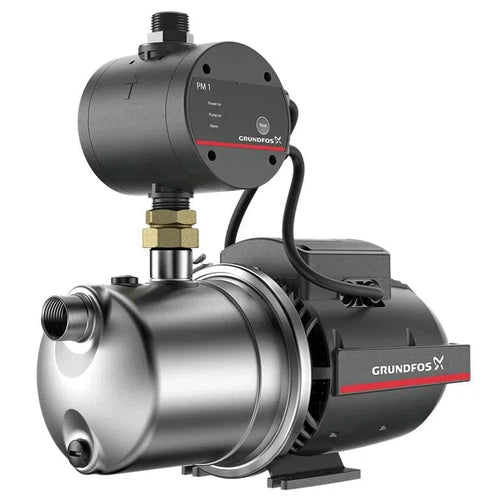

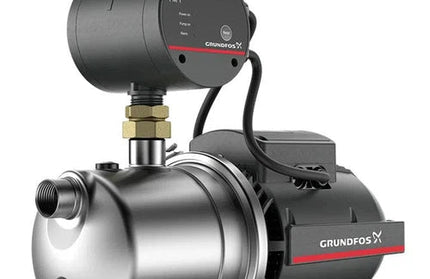

Pressure Pump Jet Self Priming JP 3-42 PM1 Grundfos

Grundfos

SKU: 99515135β““

R 6,200.00R 6,700.00Incl. VAT

1 in stock

    Description

    JP PM is a booster that consists of a pressure manager and a self-priming, single-stage centrifugal pump. JP PM is designed for various garden and domestic applications and has dry-running protection.

    Technical

    Rated flow
    3 mΒ³/h
    Rated head
    17.91 m
    Code for shaft seal
    BBVP
    Approvals
    CE,EAC
    Curve tolerance
    ISO9906:2012 3B
    Pump version
    A
    Model
    A
    Adjustable start pressure (Yes/No)
    N
    Start pressure
    1.5 bar

    Materials

    Pump housing
    Stainless steel

    EN 1.4301

    AISI 304
    Impeller
    Composite

    PPO-20GF
    Material code
    A

    Installation

    Range of ambient temperature
    0 .. 40 Β°C
    Maximum operating pressure
    PN 6 bar
    Pipe connection standard
    ISO 228-1
    Type of inlet connection
    G(F)
    Type of outlet connection
    G(F)
    Size of inlet connection
    1 inch
    Size of outlet connection
    1 inch
    Pressure rating for connection
    PN 6

    Liquid

    Pumped liquid
    Water
    Liquid temperature range
    0 .. 40 Β°C
    Selected liquid temperature
    20 Β°C
    Density
    998.2 kg/mΒ³

    Electrical data

    Power input P1
    700 W
    Rated power - P2
    0.55 kW
    Mains frequency
    50 Hz
    Rated voltage
    1 x 220-240 V
    Rated current
    3.2 A
    Starting current
    13.2 A
    Rated speed
    2850 rpm
    Capacitor size - run
    14 Β΅F/450 V
    Enclosure class (IEC 34-5)
    IP44
    Insulation class (IEC 85)
    F
    Length of cable
    1.5 m
    Power plug
    SCHUKO

    Controls

    Type of connector
    Type E/F (CEE7/7)

    Others

    Net weight
    9 kg
    Gross weight
    14 kg
    Environmental approvals
    WEEE
