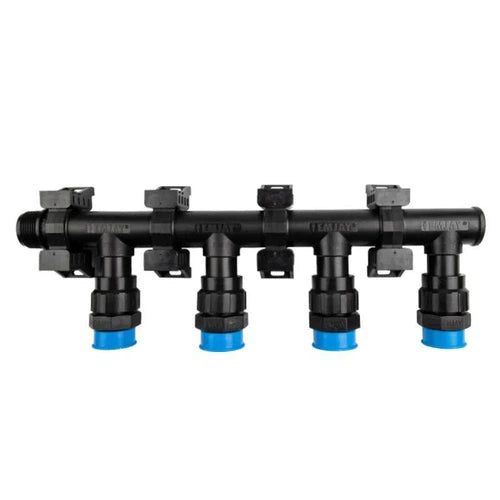

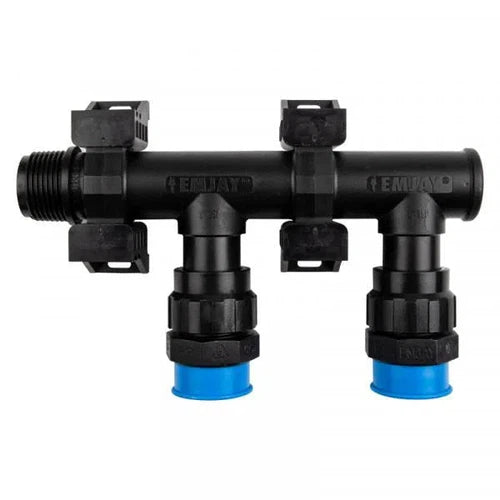

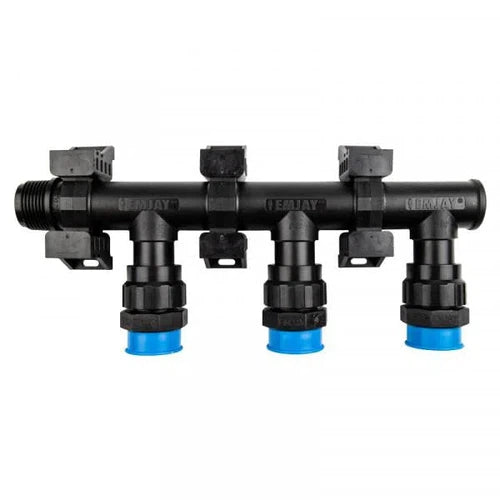

Manifold Union Assembled Emjay

The Emjay® Manifold is a strong, versatile and easy to use system for irrigation valves.
– It can be used in manual or automatic systems with either manual or electric solenoid valves.
– The unique clip-together system is easy to use, extendable and needs no tools.
– This versatile system has a large range of fittings which allow for numerous configurations and setups.
– It is robust and durable having been extensively tested at 16Bar with over 30,000 test cycles completed
– Rated at a maximum operating pressure of 14Bar

How Does it Work? Emjay® Manifold Fittings are assembled by simply inserting the coupling between two fittings, pressing the fittings together and sliding the locking clips over the ends. Each join requires two clips and a coupling, except the inlet and endcap which have built in couplings.				Emjay® Manifold Union Fittings have a special BSP / ACME Nipple for attaching electric valves. The BSP side is screwed tightly against the o’ring which seals against the edge of the valve. The ACME side is tightened against the manifold body which seals against manifold body o’ring.

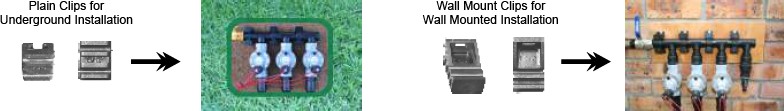

By using Crosses, Tees, Elbows, Endcaps and Inlets, numerous different configurations of valves are possible. From 2 stations to 20 or more. The Emjay® Manifold can be installed under ground in a valve box, using the standard locking clips or it can be mounted on the wall using the specially designed wall mount clips. The Wall Mount Clips have pre-drilled mounting holes and are designed to keep the manifold far enough away from the wall to allow access to the nut to connect the valves while in place. It is, however, recommended that the manifold is first mounted onto a board or similar rigid material to ensure that it is mounted flat.
THE MALE FITTINGS: – for direct attachment of female BSP threaded valves or fittingsThe Male Manifold Fittings have an accurately tapered male BSP thread which can be screwed directly into the female threaded valve or female threaded fittings such as sockets or bushes. Thread tape should be used as the seal is made on the thread. The Male Tees and Crosspieces are symmetrical which allows for a half turn when tightening valves.
