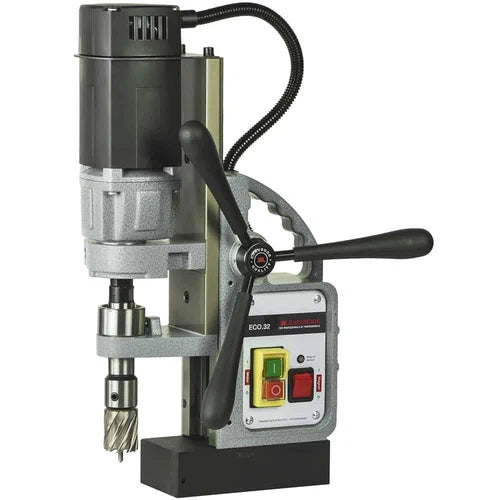

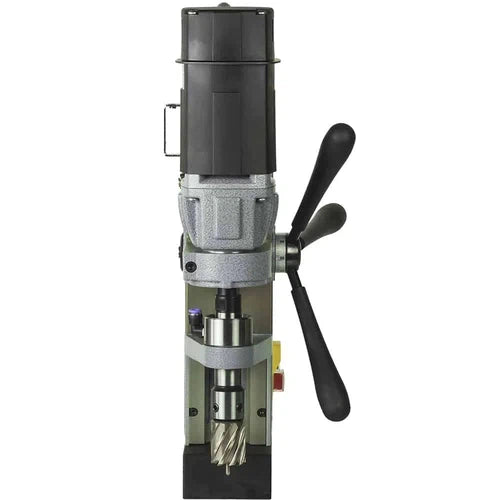

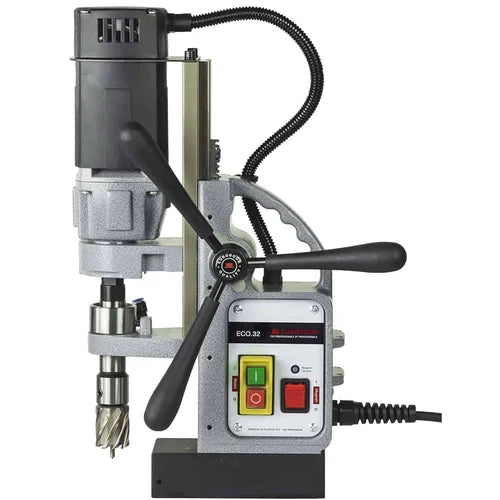

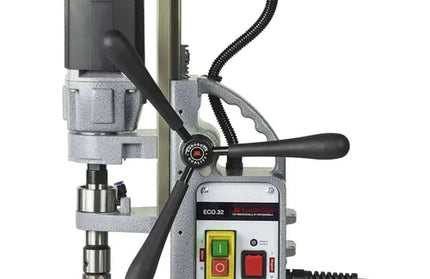

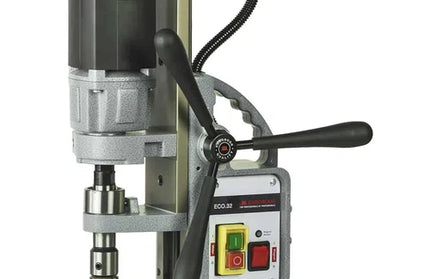

Euroboor ECO.32

Magnetic drilling machine

Ø 12 - 32 mm / 11 kg

The compact Euroboor ECO.32 magnetic core drilling machine has a powerful single speed 1,000 W motor. This portable magnetic core drilling machine is suitable for the use with Weldon twist drills up to ø 13 mm and countersinks up to 40 mm. This light and reliable machine is a true addition for every workplace.

Technical data

Annular cutting	Ø 12 - 32 mm
Twist drilling	Ø 1 - 13 mm
Countersinking	Ø 10 - 40 mm

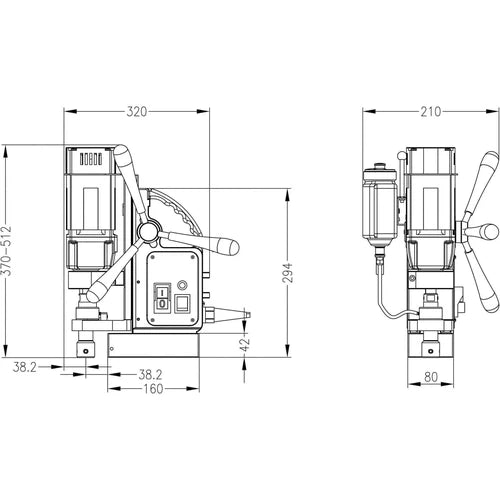

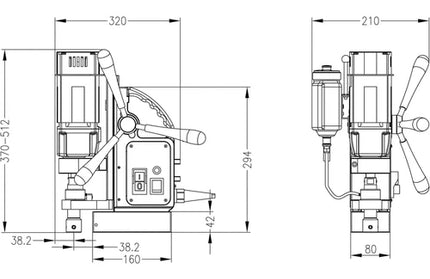

Length	320 mm
Width	210 mm
Height	370 - 512 mm
Stroke	150 mm
Weight	11 kg*
Magnet (l x w x h)	160 x 80 x 42 mm
Magnetic force	1,500 kg
Motor power	1,000 W
Total power	1,050 W
Speed (no load)	775 rpm
Speed (load 1,000 W)	440 rpm
Spindle (Weldon)	19.05 mm
Voltage	220 - 240 V / 50 - 60 Hz
*Exclusive power cord and handles
