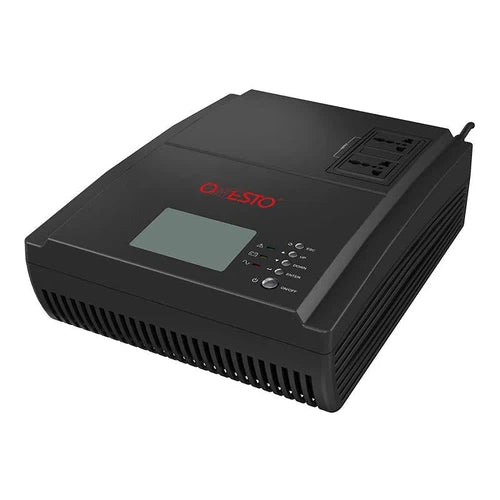

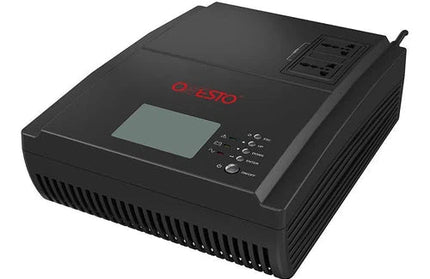

Inverter UPS 24𝑉 Onestoⓓ

• - Compact and quiet, less than 50dB of noise
• - Selectable voltage settings for wide or narrow voltage windows
• - Input protections from under/over voltage and frequency
• - 10A or 20A 3 stage charging that is independent, able to charge while the inverter is turned off.
• - Battery protections with low/high DC cut-off voltage settings
• - Output protections from overload and short-circuit
• - 20ms switching between line and battery mode
• - Auto-restart function
• - LCD indicators and buzzer alarms that can be muted

 Input: Voltage Range:

• - Narrow Range Mode: 170-280Vac
• - Wide Range Mode: 90-280VAC
• Frequency Range: 50/60Hz(Auto Sensing)

 Output:

• - AC Voltage Regulation (Batt Mode): 230Vac +- 10%
• - Frequency Range (Batt Mode): 50/60Hz +- 1Hz
• - Trnasfer Time: 20ms Typical
• - Waveform: Modified Sine Wave

 Battery:

• - Battery Voltage: 24V
• Charging Current: 10A/20A

 Protection: Low Battery Alarm, Low Battery Shutdown, Over Charge Protection, Overload Protection, Over Temperature Protection, Short Circut Protection

 Alarm:

• - Low Battery: Beep Every Second
• - Overload: Beep Every 0,5 Seconds
• - Fault: Contiunous Beep

 Operating Environment:

- Humidity: 0-90% RH @ 0-50 c (non-condensing)

 Physical:

• - Dimension (DxWxH) mm: 310x239x93

 Others

• - Built-in USB Charger (5V x 1A max): Optional
• - AC Input Voltage Range Selection: Yes
• - AC Charging Current Selection: Yes
• - Low DC Cut-off Voltage Setting: Yes
• - AC Output Rating Voltage Selection: Yes
• - Buzzer Mute Control: Yes
• - Battery Voltage & Load Percentage Display: Yes
