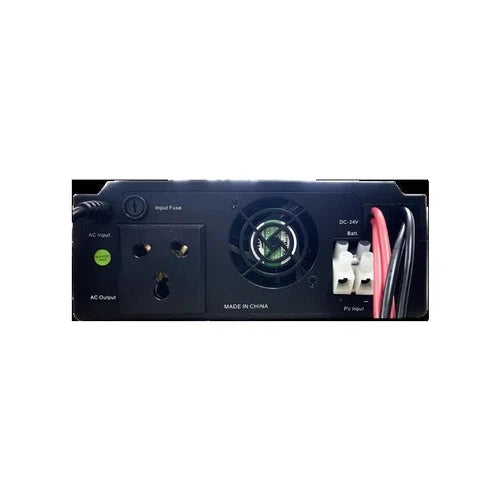

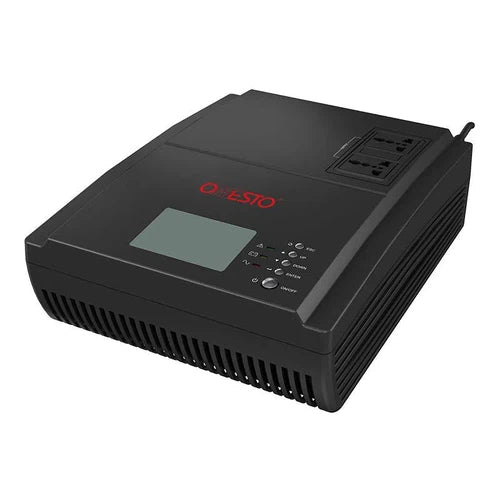

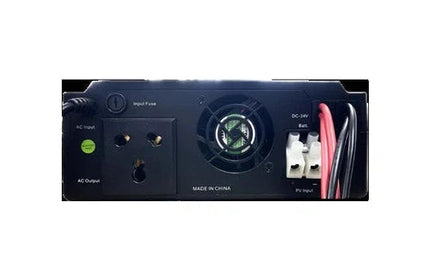

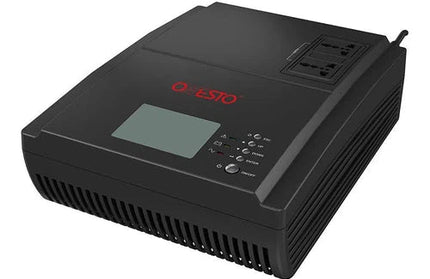

Off-Grid Inverter 1.6𝑘𝑊 Onesto

• - Compact and quiet, less than 50dB of noise
• - Selectable voltage settings for wide or narrow voltage windows
• - Input protections from under/over voltage and frequency
• - 10A or 20A 3 stage charging that is independent, able to charge while the inverter is turned off.
• - Battery protections with low/high DC cut-off voltage settings
• - Output protections from overload and short-circuit
• - 20ms switching between line and battery mode
• - LCD indicators and buzzer alarms that can be muted
• - Solar cell module, battery reverse polarity connection protection
• - Solar charge controller and solar inverter.

 Model: SIP1600

• - Capacity(VA/W): 2000/1600
• - Nominal Battery Voltage (Lead-Acid Battery): 24Vdc
•  Line Mode

 Input

• - Nominal Voltage: 230Vac (170-280 Vac Narrow Range)
• - Voltage Range: 90-280Vac (Wide Range)
• - Nominal Frequency: 50Hz or 60Hz

 Output

• - Voltage: 230 Vac
• - Frequency/Waveform: Tracking the Utility
• - Transfer Time: 20ms Typical

 Backup Mode

 Output

• - Voltage: 220/230/240 Vac
• - Frequency: 50Hz or 60Hz (Auto Detection)
• - Waveform: Modified Sine Wave

 Protection: Low Battery Alarm, Low Battery Shutdown, Over Charge Protection, Overload Protection, Over Temperature Protection, Short Circut Protection

 Battery Charger ( Power by AC)

• - Charging Algorithm: 3 -Stage Charging
• - AC Charing Mode: 10A/20A
• - Floating Charging Voltage: 27,50 +_ 0,50V
• - Overcharging Voltage: 30,60V

Solar Battery Charger

• - Max Input Power: 1200W
• - Charging Current: (PWM): 50A
• - System DC Voltage: 24Vdc
• - Optimal Work Voltage Range: 30V - 32V
• - Max PV Input Current: 60V
• - Max PV Input Current: 50A

 General:

• - Physical Dimension (DxWxH) mm: 316x227x92
• - Net Weight (kg) 3.3
• - Operating Envionment : 0 - 50c, 0% - 90% Relative Humidity (Non -Condensing)
• - Storage Environment: -15 to 50c , 0% - 90% Relative Humidty(Non - Condensing)
• - Noise Level: Less Than 50dB
• - Built-in USB Charger (5V x 1A max): Optional
• - AC Input Voltage Range Selection: Yes
• - AC Charging Current Selection: Yes
• - Low DC Cut-off Voltage Setting: Yes
• - AC Output Rating Voltage Selection: Yes
• - Buzzer Mute Control: Yes
• - Battery Voltage & Load Percentage Display: Yes
