Patent No 2012/06170

PRODUCT FEATURES

• 125 Litre water – can be used with any quality water.
• Heats water to a maximum of 59°C as apposed to Chinese versions boiling all day.
• Provide hot water 80% of the time without the use of electricity.
• 100% South African Local Content

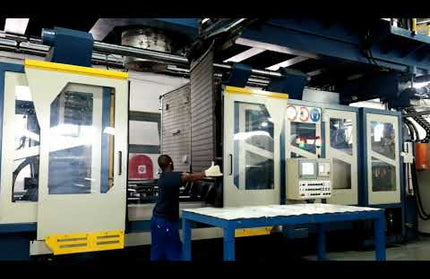

• Local manufacturing
• Theft deterrent
• Corrosion free HDPE Tank
• Hail and Frost proof HDPE Collector
• UV Resistant
• Correctly priced
• Simple and sensible:

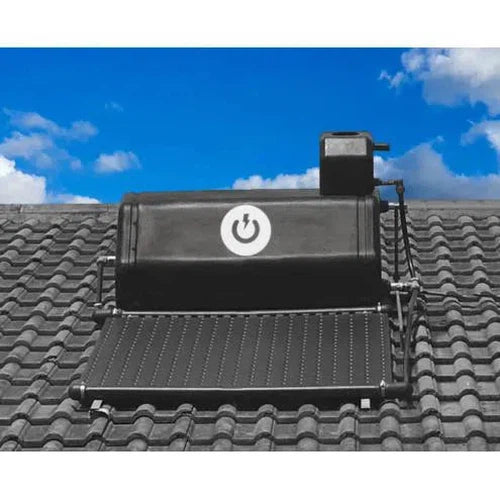

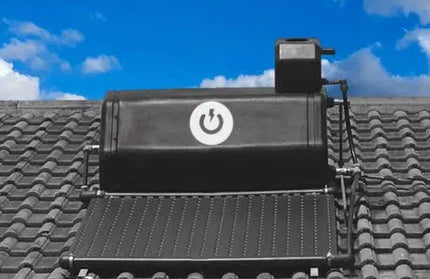

• Installed flat on the roof spreading the pressure points on the roof structure.
• Limited storm exposure.
• Effective and efficient
• Easy and cost effective assembly
• Simplified and sensible installation

TECHNICAL DATA

• Collector Length 1500mm
• Plumbing Connections 22mm
• Collector Width 1200mm
• Outer Tanks Width 1100mm

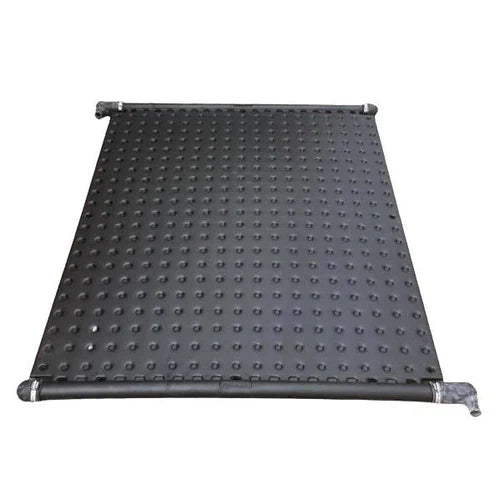

• Collector Material: Polyethylene
• Working Pressure: 0 Kpa
• Absorption: 95%
• Stand: Galvanised
• Emittance: 5%
• Inclination Frame: Flat Roof – 12 Degree Roof

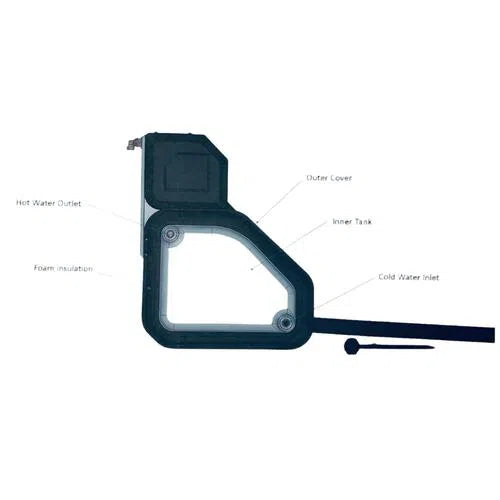

• Inner Tank Material: Polyethylene
• Heat Loss: 11%
• Insulation: 50mm Polyurethane
• Collector Aperture: 1.8 m²
• Outer Tank Material: Polyethylene
• Rated Capacity: 125 Litre
• SABS Q-factor: 14.3Mj

Installation Manual

Contents

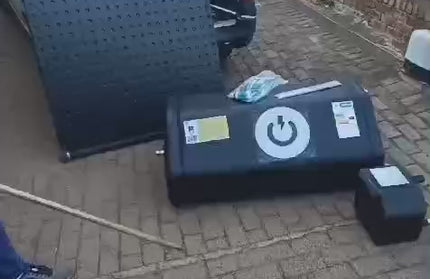

• 1x Box Geyser (solawater125NP)(130x48x60cm)

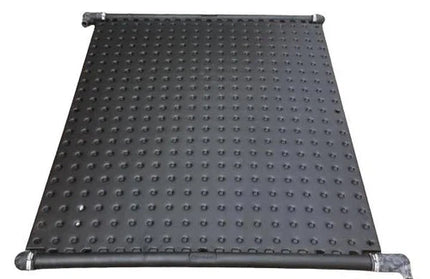

• 1x Box Solar collector (solawaterPFP1.8)(160x134x8cm)
• 1x Capillary Tank (cistern tank)(30x34x28cm)

Warranty 1 Year all Round
