Experience intelligence in motion with the SDO4 SMART garage door operator, boasting whisper-quiet operation thanks to its state-of-the-art mechanical design, extended battery life for uninterrupted convenience during power outages and our pioneering SMART technology for quick and easy setup.
Main features:
- Connecting you to convenience with smartphone integration
- Redefining the installation experience with the easiest and most intuitive electronic and mechanical commissioning of any garage motor in the SDO4’s class
- Always-on reliability
- Advanced safety and obstruction-detection technology for more peace of mind
- Adjustable speed on tip-up doors
- Compatible with Photon SMART wireless beams – easier and more cost-effective than ever before to fit safety beams
- The ultimate in flexibility with programmable IOs
- App-based management of remote controls
- Industry-leading security features including tamper detection and intelligent door status monitoring
Technical Specifications:
| T10 | T12 | ||
|---|---|---|---|
| Input voltage | 230V AC +/-10% @ 50/60Hz1 | 230V AC +/-10% @ 50/60Hz1 | |
| Motor voltage1 | 24V DC | 24V DC | |
| Motor power supply - rated2 | 80W DC | 100W DC | |
| Motor supply | Battery supply 2 x 3.4Ah 12V DC | Battery supply 2 x 3.4Ah 12V DC | |
| Maximum door width | 6.5 metres | 6.5 metres | |
| Maximum door area | 12 Square meters | 15 Square meters | |
| Maximum push/pull force | 40kgf | 50kgf | |
| Maximum lifting capacity | 1000N | 1200N | |
| Operations in standby mode | Up to 90 dependent on door size, weight, height and duration of power failure / condition of batteries | Up to 90 dependent on door size, weight, height and duration of power failure / condition of batteries | |
| Maximum operator travel speed3 | 9m/min | 9m/min | |
| Door travel adjustment | Physical end-stops (Automatic limit set) | Physical end-stops (Automatic limit set) | |
| Safety obstruction force system | Built-in menu | Built-in menu | |
| Light | LED 2W | LED 2W | |
| Autoclose2 | Menu Selectable | Menu Selectable | |
| Infrared safety beams | Menu Selectable (Optional but recommended) | Menu Selectable (Optional but recommended) | |
| Onboard receiver type | Code-hopping single channel | Code-hopping single channel | |
| Receiver code storage capacity | 20x 4-Button Transmitters | 20x 4-Button Transmitters | |
| Receiver frequency | 433.92Mhz | 433.92Mhz |
1. Can operate off a solar supply, consult Centurion Systems for assistance
2. Can increase battery capacity for longer standby times
3. Speed varies with load

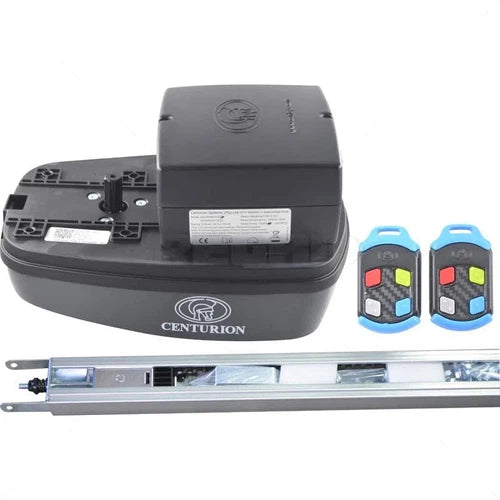

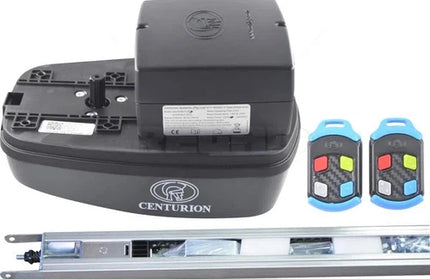

1x Box Contents
1x Trac 3.2m
- 1x SD04 Smart T10 Motor
- 1x SD04 3.2m Shaft
- 2x Nova 4 Button Remote
- 1x User Manual
- 2x 12v 3.4ah Battery
