Description
-
Standard: IEC/EN 61008-1
- Tripping Curve: AC/C
- Number of Poles:1P+N,3P+N
- Rated Current: 63/80/100 A
- Rated Operation Voltage Ue :240V(1P+N),415V(3P+N)
- Rated Insulation Voltage Ui:500V
- Rated Frequency Hz：50/60Hz
- Rated Impulse withstand Voltage Uimp:4kV
- Rated residual operating current IΔn(mA):10/30/100/300
- Protection Index IP：IP20
- Ambient Temperature: -25℃~﹢55℃

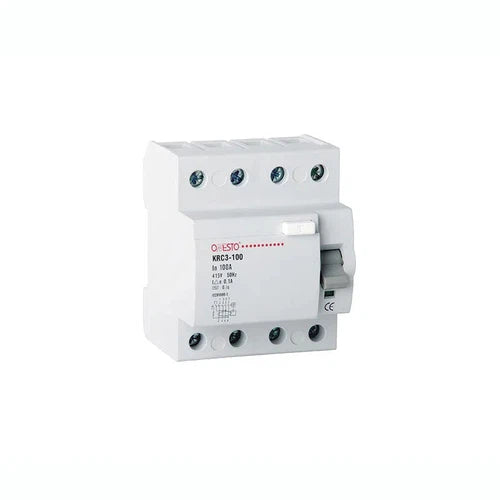

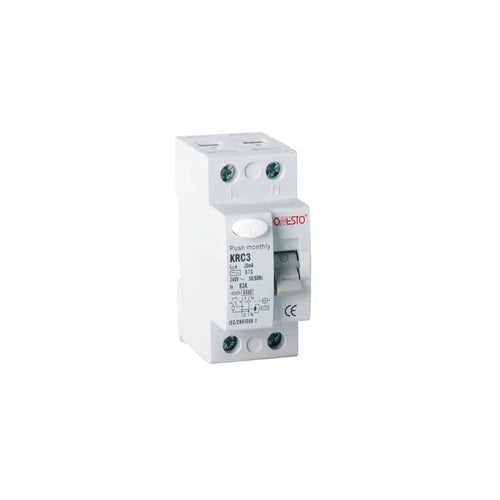

Earth Leakage RCCB DIN Onesto
Onesto
R 275.00Incl. VAT
6 products in stock
Description
-
Standard: IEC/EN 61008-1
- Tripping Curve: AC/C
- Number of Poles:1P+N,3P+N
- Rated Current: 63/80/100 A
- Rated Operation Voltage Ue :240V(1P+N),415V(3P+N)
- Rated Insulation Voltage Ui:500V
- Rated Frequency Hz：50/60Hz
- Rated Impulse withstand Voltage Uimp:4kV
- Rated residual operating current IΔn(mA):10/30/100/300
- Protection Index IP：IP20
- Ambient Temperature: -25℃~﹢55℃
