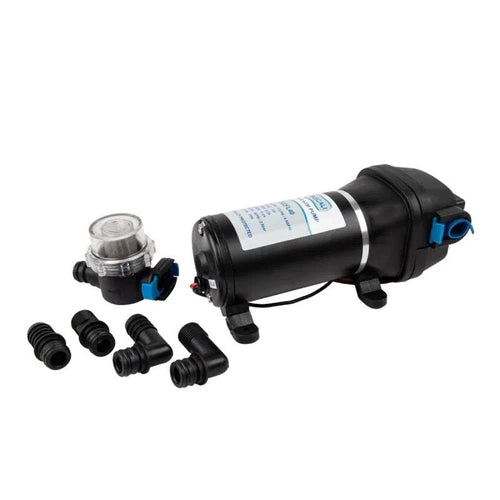

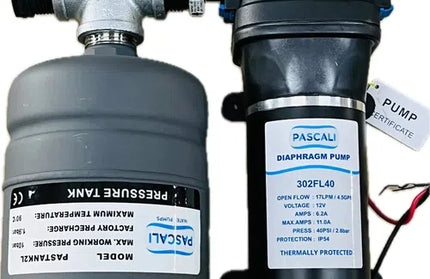

Diaphragm Pump 12𝑉 Pascali »

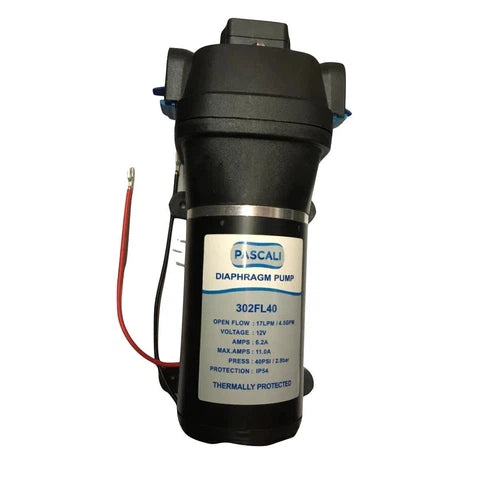

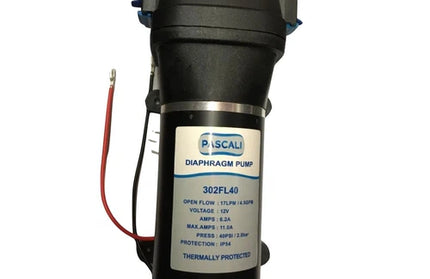

302FL40 ELECTRIC DIAPHRAGM PUMP GENERAL SPECIFICATIONS

• - Permanent magnet and intermittent duty
• - Built-in pressure switch automatically starts and stops pump when faucets are opened and closed
• - Self-priming so pump can be located above water tank - Runs dry for extended periods of time without damage

• - Built-in thermal protector
• - Size: 13.2” L x 4.9” W x 4.1” H (335 x 12 x 105 mm)
• - Weight (DC): N.W 4.22 lb (1.90 kg) G.W 5.11 lb (2.30 kg)
• - Weight (AC): N.W 5.44 lb (2.45 kg) G.W 6.44 lb (2.90 kg)
• - Pump Design: 4 Chamber Diaphragm

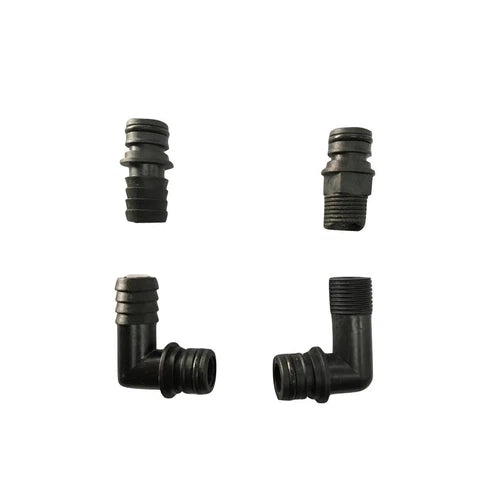

• - PortSize:⅜” (9.5 mm) Hose Barb OPERATING PARAMETERS
• - Max Liquid Temperature: 60°C (140°F)
• - Pressure max: 40 PSI (2.8 bar)
• - Voltage: 12 V, 24 V DC, 115 V, 220 V AC
• - Open Flow: 4.47 GPM(17 ℓ/min) MATERIAL
• - Diaphragm Material - Santoprene
• - Check Valve
• - EPDM or Viton
• - Body Material: - Polypropylene
• - Spring Material
• - Stainless Steel CODE VOLT FLOW PRESSURE AMPS DC /AC gpm(lpm) Psi(bar) A 302FL40 12 4.47(17.0) 40(2.76) 9.2 302FL40D Diaphragm

APPLICATION Ideal for camping, boating, cattle and game spraying. Self priming and for intermittent use only.
