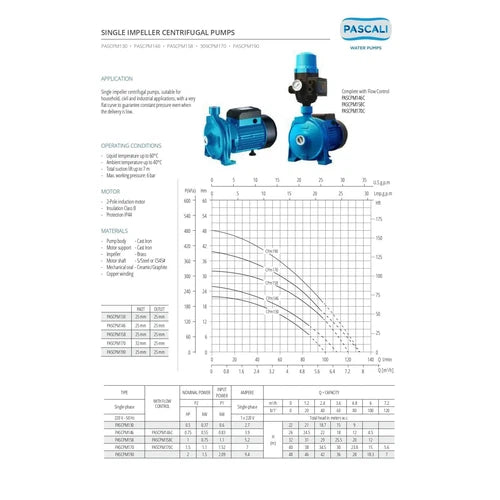

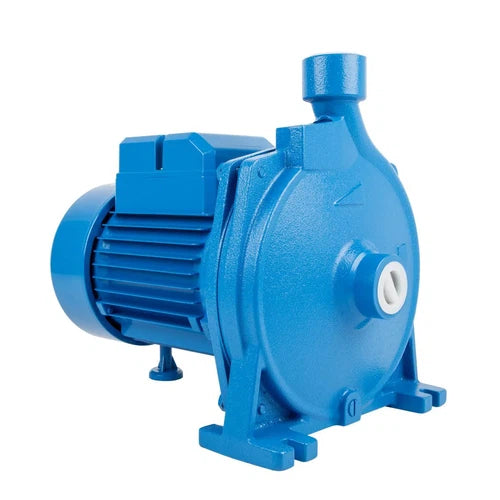

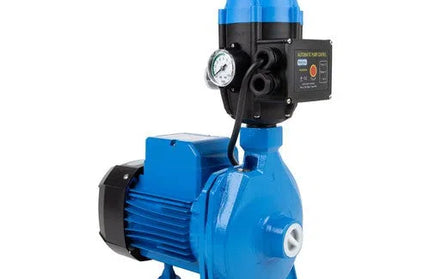

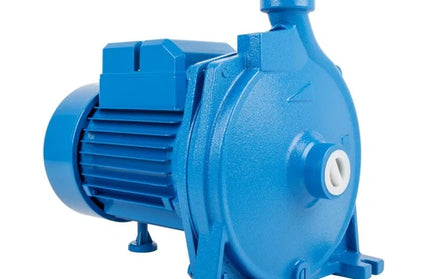

Centrifugal Pump Single Impeller 230𝑉 Pascali »

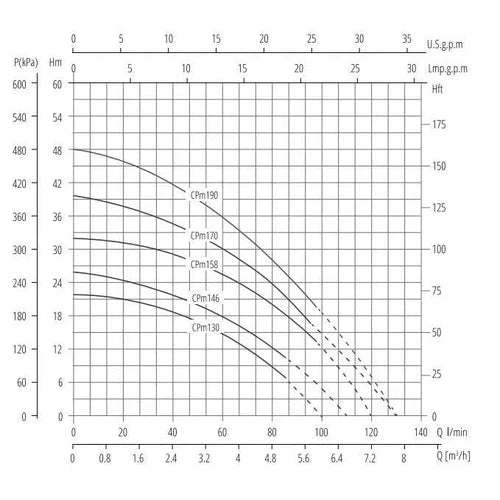

Single impeller centrifugal pumps, suitable for household, civil and industrial applications, with a very flat curve to guarantee constant pressure even when the delivery is low.

OPERATING CONDITIONS

• - Liquid temperature up to 60°C
• - Ambient temperature up to 40°C
• - Total suction lift up to 7 m
• - Max. working pressure: 6 bar MOTOR
• - 2-Pole induction motor
• - Insulation Class B
• - Protection IP44 MATERIALS
• - Pump body
• - Cast Iron
• - Motor support
• - Cast Iron
• - Impeller - Brass
• - Motor shaft - S/Steel or CS45#
• - Mechanical seal - Ceramic/Graphite
• - Copper winding
