● LCD backlight, data hold
● Auto power off, low battery indication

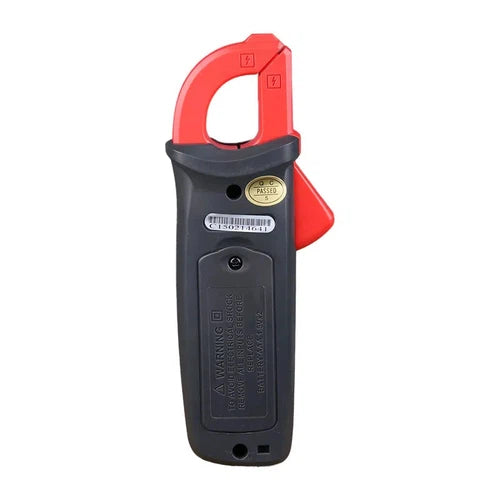

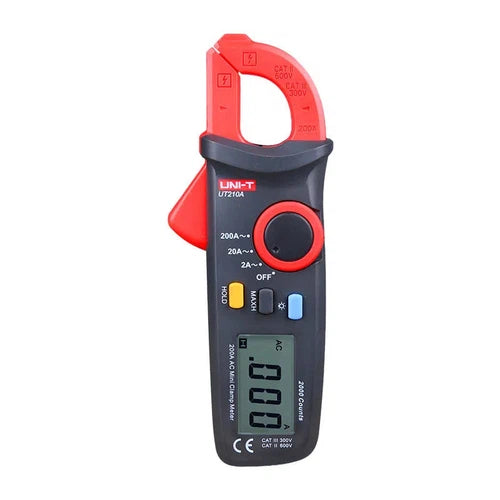

Specifications of UT210 Series Mini Clamp Meters
Specifications |
Range |
UT210A |
UT210B |
UT210C |
UT210D |
UT210E |
AC current (A) |
200A |
±(2.5%+20) |
±(2.5%+20) |
±(2%+10) |
±(2.5%+8) |
|
100A |
|
|
|
|
±(2.5%+5) |
DC current (A) |
200A |
|
|
|
±(2%+3) |
|
100A |
|
|
|
|
±(2%+3) |
AC voltage (V) |
600V |
|
|
±(1%+3) |
±(1%+3) |
±(1%+3) |
DC voltage (V) |
600V |
|
|
±(0.7%+3) |
±(0.7%+3) |
±(0.7%+3) |
Resistance (Ω) |
20MΩ |
|
|
±(1%+2) |
±(1%+2) |
±(1%+2) |
Frequency (Hz) |
60kHz |
|
|
|
±(0.1%+4) |
|
Capacitance (F) |
20mF |
|
|
±(4%+5) |
±(4%+5) |
±(4%+5) |
Temperature |
-40~1000℃ |
|
|
±(1%+3) |
±(1%+3) |
|
-40~1832℉ |
|
|
±(1.5%+5) |
±(1.5%+5) |
|
Features |
Display count |
|
2000 |
2000 |
2000 |
2000 |
2000 |
Continuity buzzer |
|
√ |
√ |
√ |
√ |
√ |
Auto range |
|
|
|
√ |
√ |
√ |
Jaw opening |
|
16mm |
16mm |
17mm |
17mm |
17mm |
Diode test |
Around 3.0V |
|
|
√ |
√ |
√ |
General Characteristics |
Power |
1.5V battery (R03) x 2 |
Display |
39.3mm x 26.5mm |
Product color |
Red and grey |
Product net weight |
UT210A/B: 150g (batteries included); UT210C/D/E: 170g |
Product size |
UT210A/B: 158mm x 60mm x 33.5mm; UT210C/D/E: 175mm x 60mm x 33.5mm |
Standard accessories |
Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D) |
Standard individual packing |
Gift box, English manual, carrying bag (UT210C/UT210D/UT210E) |
Standard quantity per carton |
40pcs |
Standard carton measurement |
UT210A/B: 345mm x 245mm x 300mm; UT210C/D/E: 385mm x 345mm x 305mm |
Standard carton gross weight |
UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg |
