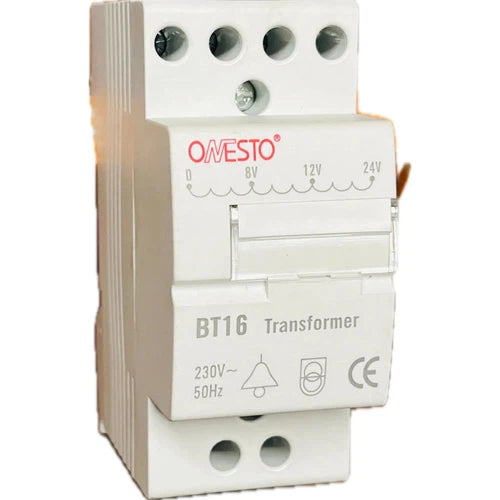

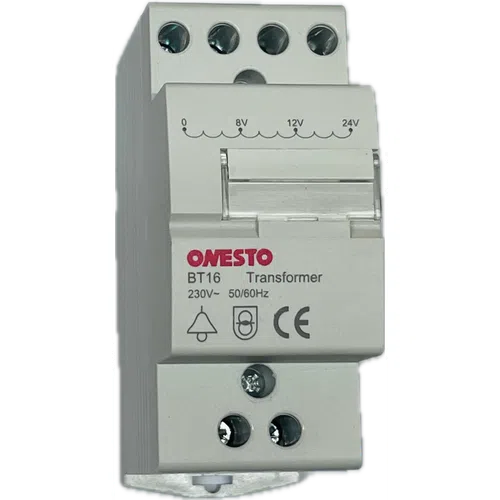

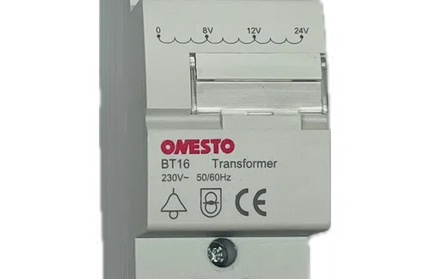

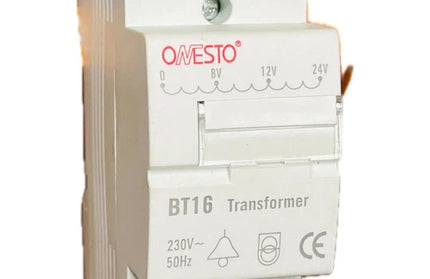

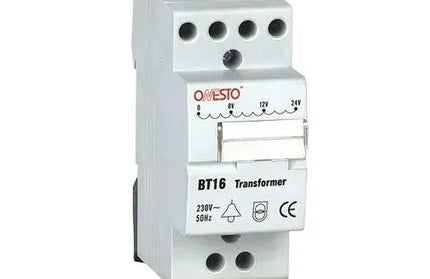

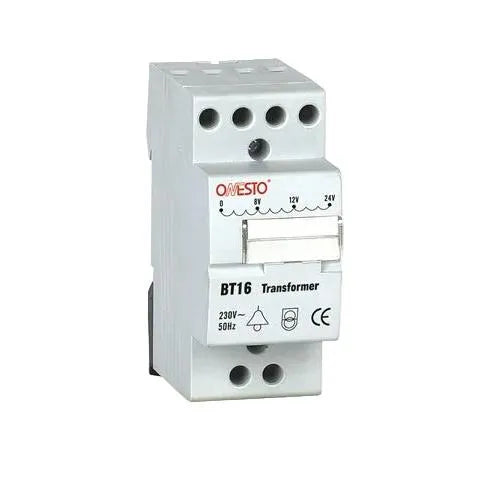

BT16 Bell Transformer — Quick Summary
Type: 16 VA AC signalling (bell) transformer
Primary: 230 V AC
Secondary taps: 8 V / 12 V / 24 V AC (use 0 + tap)
Max Current per Tap
-
8 V → 2.0 A
-
12 V → 1.33 A
-
24 V → 1.0 A
Used for
Doorbells, chimes, intercoms, gate stations, alarm keypads, light signal circuits.
Not for
Maglocks, CCTV, LED strips, DC loads, or anything continuous/heavy.
Terminals
P = Live, N = Neutral, 0 = Common, 8/12/16 = output taps.

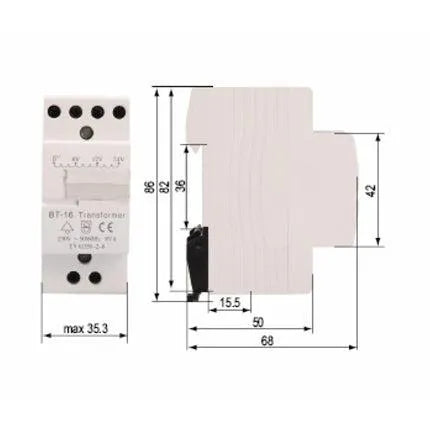

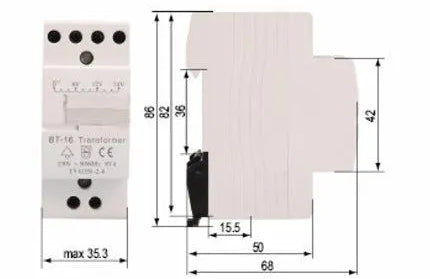

Mounting & Safety
DIN/screw mount, insulated housing, thermal fuse, DB-friendly.
