Description

ACS C2-CM80
For one generators connection
10A-80A adjustable current
1s-30s adjustable restoring delay time
Operation status with LED indication
Automativ Generator ON/OFF ignition


Automatic changeover switch
No. of poles
1P+N
No. of generator connection
1
Rated current
10A-80A Adjustable (Mains & Generator)
Rated voltage
230V AC
Operating voltage range
0.75-1.15 of Un
Rated frequency
50/60HZ
Power consumption
4.5VA,230V AC
Rated insulation voltage
500V
Rated impulse voltage
1.5kV
Dielectric strength
2.0kV
Duty
Uninterrupted
LED indication
Mains:Blue,Generator:Blue,Load:Green,Fault:Red
Changeover delay time
Mains to Generator:3s, G1 to G2:3s ,Generator to Mains:1-30s Adjustable
Changeover line
Live and Neutral Line
Switching capacity
80A@230V AC (COSφ=1),30A with inductive load COSφ=0.6
Utilization catagory
AC 21A (IEC 60947-3),AC 31B (IEC60947-6)
Ambient temperature
-5 to 55℃
Pollution degree
2
Protection class
IP22
Mounting
DIN RAIL (35x7.5mm)
Mounting position
Horizontal,Vertival
Terminal capacity
16-25mm2
Dimension
162x89x70mm
Standard conformity
IEC 60947-7/IEC 60947-3

Product form

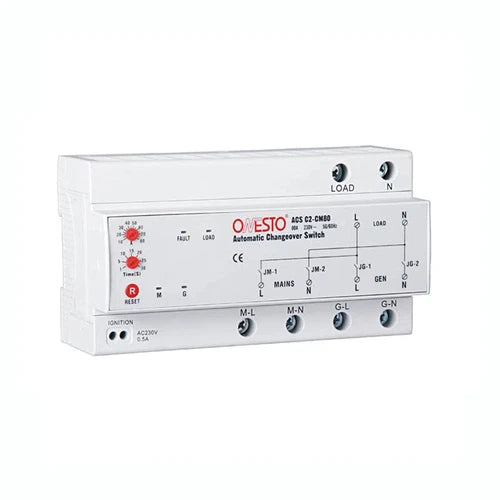

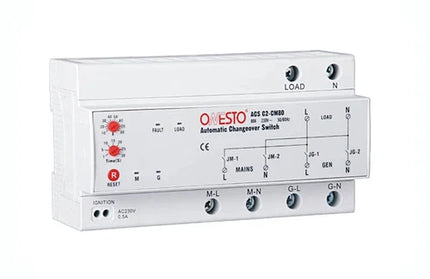

Automatic Changeover Switch DIN Onesto

Onesto

SKU: ACS C2-CM80

R 1,950.00Incl. VAT

1 in stock

    Description

    ACS C2-CM80
    For one generators connection
    10A-80A adjustable current
    1s-30s adjustable restoring delay time
    Operation status with LED indication
    Automativ Generator ON/OFF ignition


    Automatic changeover switch
    No. of poles
    1P+N
    No. of generator connection
    1
    Rated current
    10A-80A Adjustable (Mains & Generator)
    Rated voltage
    230V AC
    Operating voltage range
    0.75-1.15 of Un
    Rated frequency
    50/60HZ
    Power consumption
    4.5VA,230V AC
    Rated insulation voltage
    500V
    Rated impulse voltage
    1.5kV
    Dielectric strength
    2.0kV
    Duty
    Uninterrupted
    LED indication
    Mains:Blue,Generator:Blue,Load:Green,Fault:Red
    Changeover delay time
    Mains to Generator:3s, G1 to G2:3s ,Generator to Mains:1-30s Adjustable
    Changeover line
    Live and Neutral Line
    Switching capacity
    80A@230V AC (COSφ=1),30A with inductive load COSφ=0.6
    Utilization catagory
    AC 21A (IEC 60947-3),AC 31B (IEC60947-6)
    Ambient temperature
    -5 to 55℃
    Pollution degree
    2
    Protection class
    IP22
    Mounting
    DIN RAIL (35x7.5mm)
    Mounting position
    Horizontal,Vertival
    Terminal capacity
    16-25mm2
    Dimension
    162x89x70mm
    Standard conformity
    IEC 60947-7/IEC 60947-3
