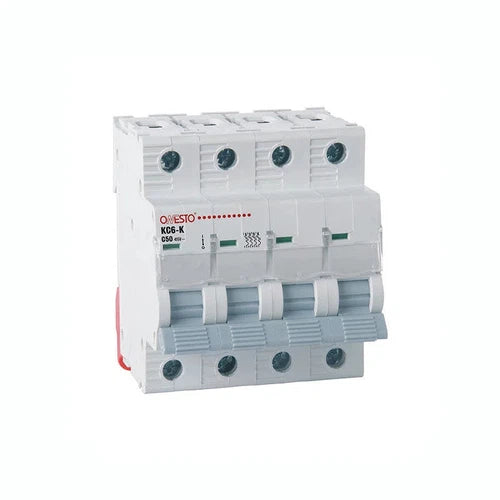

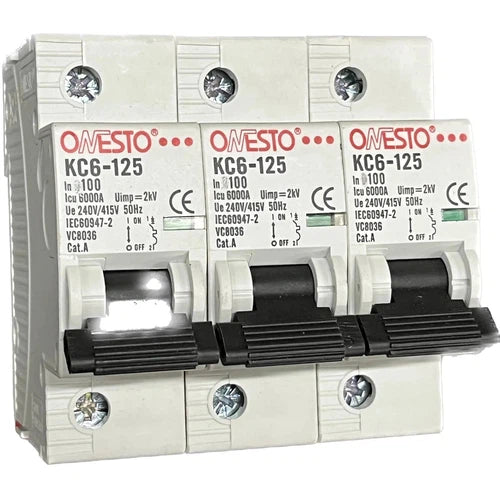

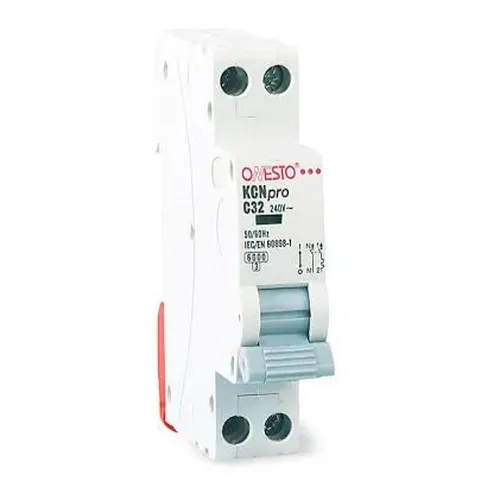

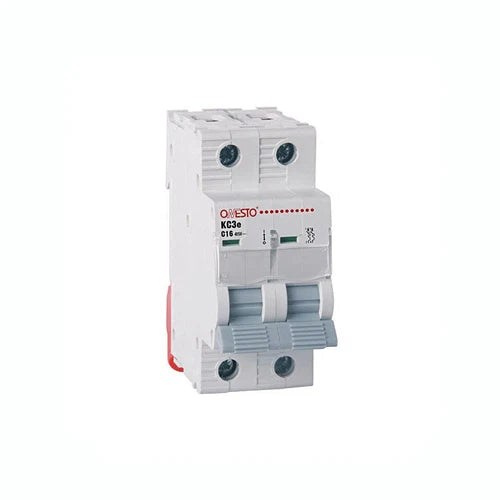

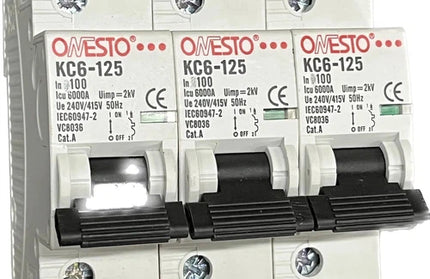

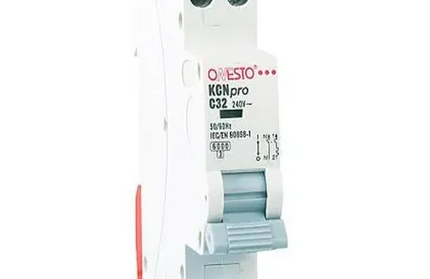

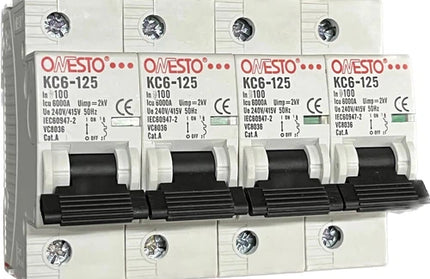

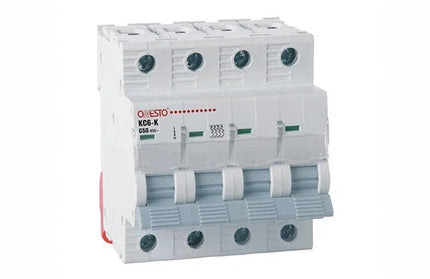

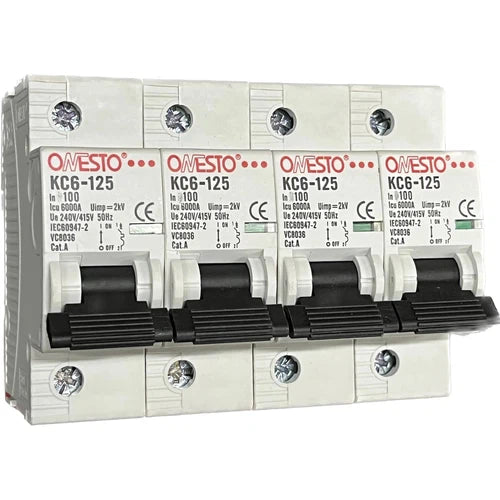

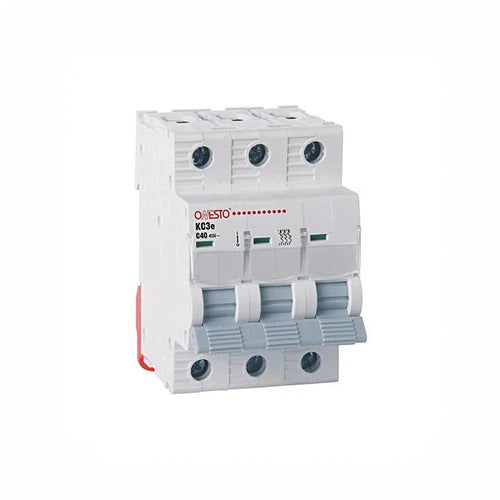

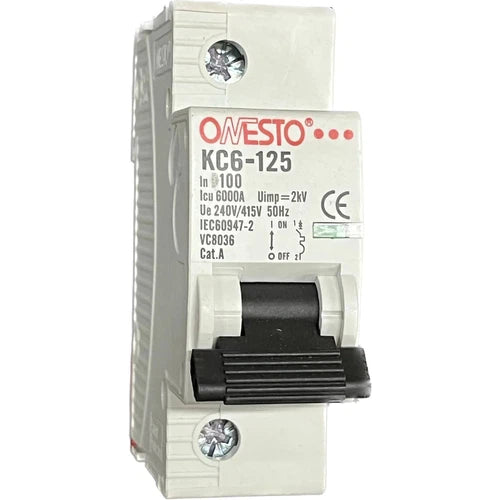

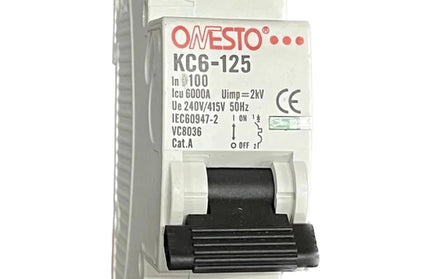

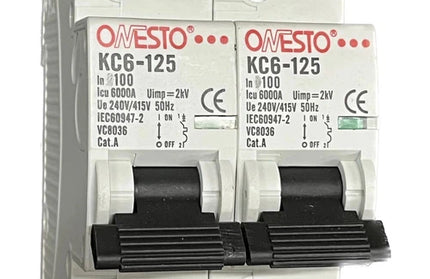

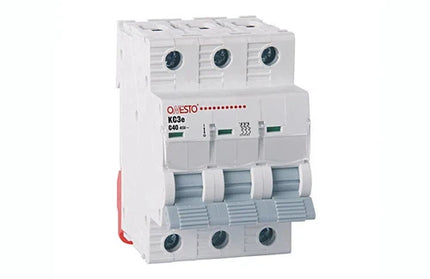

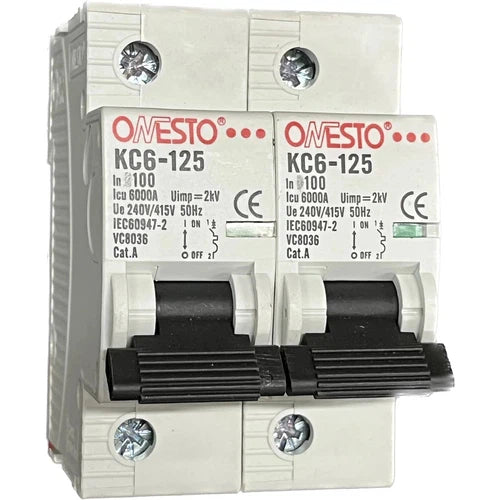

Circuit Breaker MCB DIN Onesto
Onesto
R 40.00Incl. VAT
3 products in stock Show extra info for delivery time
Description
3KA
- MCB
- Standard:
- IEC60898-1
- Tripping Curve:
- B,C,D
- Number of Poles:
- 1 2 3 4
- Rated Current:
- 1/2/3/4/6/10/16/20/25/32/40/50/63 A
- Rated Operation Voltage Ue :
- 240/415V AC for 1P; 415V AC for 2,3,4P
- Rated Insulation Voltage Ui:
- 415V
- Rated Frequency Hz：
- 50/60Hz
- Rated Impulse withstand Voltage Uimp:
- 4kV
- Rated ultimate short-circuit breaking capacity:
- Icu (kA):3.0kA
- Rated service short-circuit breaking capacity:
- Ics (kA):3.0kA
- Type of release:
- Thermo-magnetic
- Protection Index IP：
- IP20
- Ambient Temperature:
- at 30°C
6KA
- MCB
- Standard:
- IEC60898-1
- Tripping Curve:
- B,C,D
- Number of Poles:
- 1 2 3 4
- Rated Current:
- 1/2/3/4/6/10/16/20/25/32/40/50/63 A
- Rated Operation Voltage Ue :
- 240/415V AC for 1P; 415V AC for 2,3,4P
- Rated Insulation Voltage Ui:
- 415V
- Rated Frequency Hz：
- 50/60Hz
- Rated Impulse withstand Voltage Uimp:
- 4kV
- Rated ultimate short-circuit breaking capacity:
- Icu (kA):6.0kA
- Rated service short-circuit breaking capacity:
- Ics (kA):6.0kA
- Type of release:
- Thermo-magnetic
- Protection Index IP：
- IP20
- Ambient Temperature:
- 30°C
